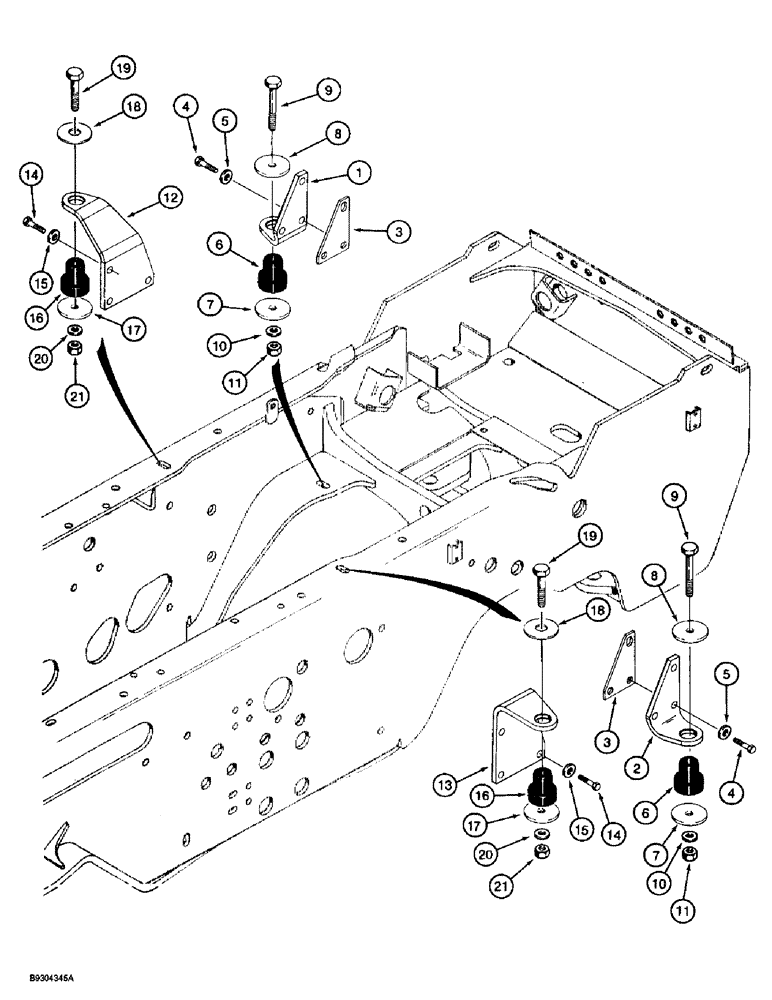

Запчасти Case 560 (2-30) - ENGINE MOUNTING (02) - ENGINE

1

104174A1

MOUNTING PARTS

MOUNT - engine, front, left-hand

1шт.

2

104172A1

MOUNTING PARTS

MOUNT - engine, front, right-hand

1шт.

3

106418A1

SHIM

- front engine mount

2шт.

4

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.25 x 30 mm

6шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

6

H426395

MOUNTING PARTS

MOUNT - engine isolation

2шт.

7

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

- flat, 33/64 x 2 x 1/8 inch, hardened

2шт.

8

D64050

WASHER

- flat, special, 1/2 inch, hardened

2шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

12

104175A1

MOUNTING PARTS

MOUNT - engine, rear, left-hand

1шт.

13

104173A1

MOUNTING PARTS

MOUNT - engine, rear, right-hand

1шт.

14

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

16

H426395

MOUNTING PARTS

MOUNT - engine isolation

2шт.

17

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

- flat, 33/64 x 2 x 1/8 inch, hardened

2шт.

18

D64050

WASHER

- flat, special, 1/2 inch, hardened

2шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

21

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
