Запчасти Case 560 (2-29A) - PISTONS AND CONNECTING RODS, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

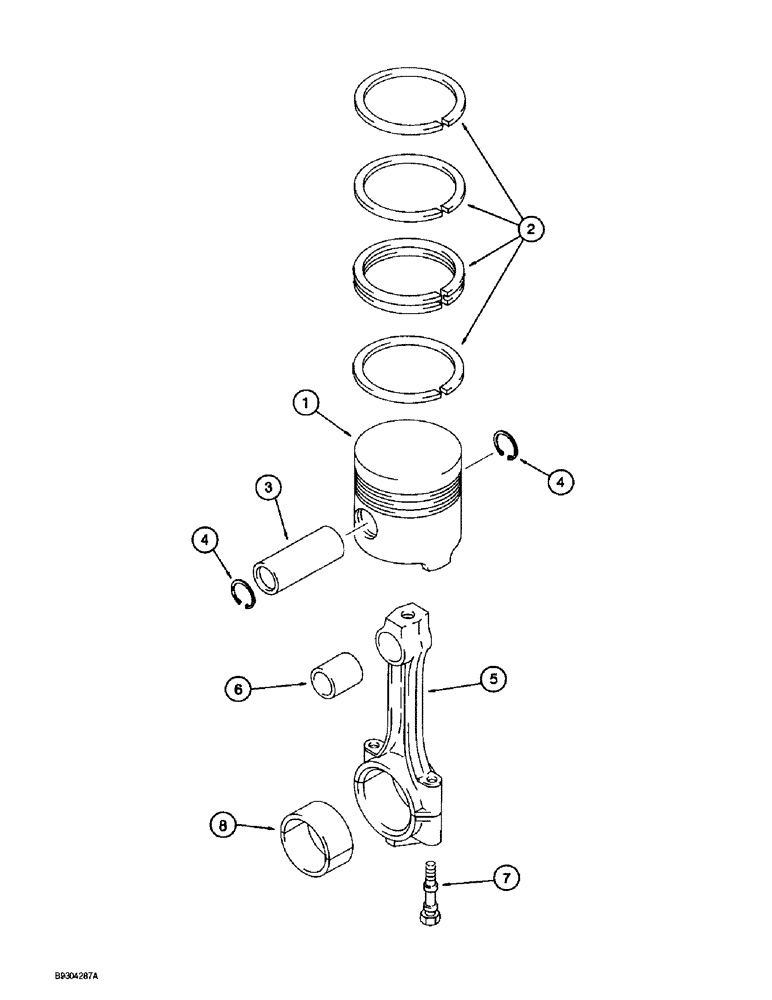

Схема запчастей Case 560 - (2-29A) - PISTONS AND CONNECTING RODS, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE
1
4
3
8
2
4
7
5
6

Артикул

Название

Примечание

Количество

1

202231A1

PISTON

- standard

4шт.

1

202232A1

PISTON

- 0.5 mm oversize

4шт.

2

126502A1

SET

RING - piston, set, standard

4шт.

2

126503A1

SET

RING - piston, set, 0.5 mm oversize

4шт.

3

126504A1

PIN

- piston

4шт.

4

126505A1

RETAINER

RING - snap, piston pin

8шт.

126506A1

ROD ASSY.

ROD ASSEMBLY - connecting, Includes: Ref. 5 - 8

4шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

6

221637A1

BUSHING

- piston pin

1шт.

7

126508A1

BOLT

- connecting rod

2шт.

8

126509A1

CRANKSHAFT BEARING

- crank pin, standard

1шт.

8

126510A1

BEARING

- crank pin, 0.2 mm undersize

1шт.

8

126511A1

BEARING

- crank pin, 0.4 mm undersize

1шт.

Выбрано товаров: 13
