(2-27A) - FLYWHEEL ASSEMBLY AND STARTER MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER

Запчасти Case 560 (2-27A) - FLYWHEEL ASSEMBLY AND STARTER MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

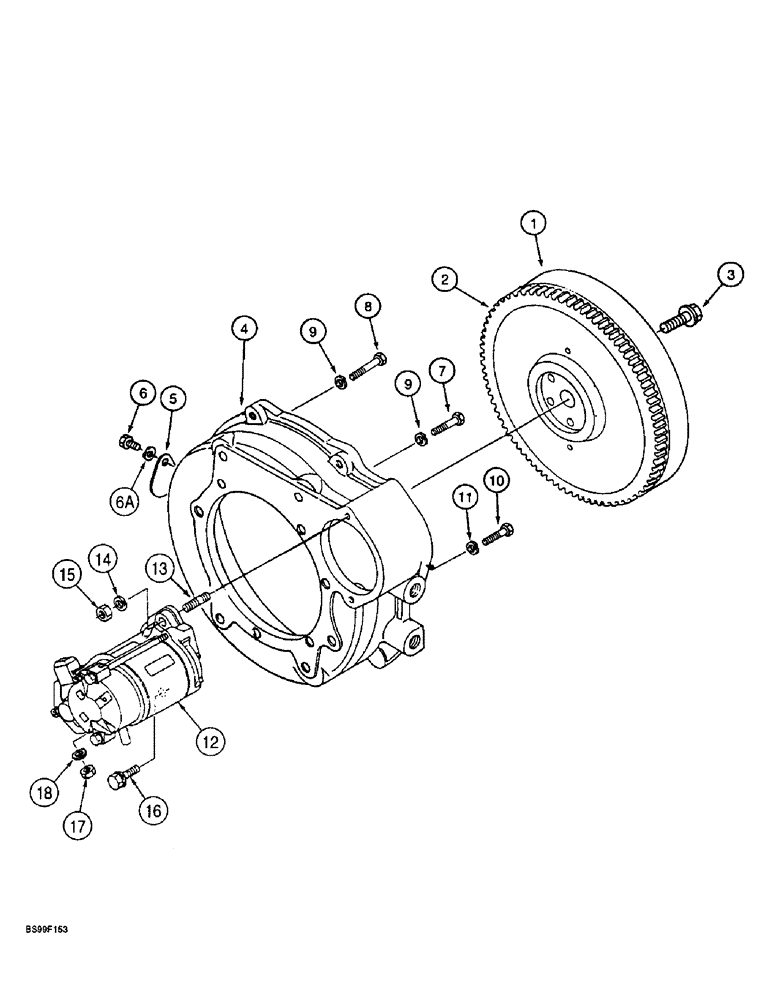

Схема запчастей Case 560 - (2-27A) - FLYWHEEL ASSEMBLY AND STARTER MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE
1
5
10
11
6a
12
7
9
3
6
17
4
18
13
14
16
9
15
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126885A1

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

126886A1

BOLT

- flywheel

6шт.

4

221618A1

HOUSING

- flywheel

1шт.

5

126888A1

COVER

- flywheel housing

1шт.

6

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, Cover plate

2шт.

6a

1959171C1

SPRING WASHER

- lock

2шт.

7

126889A1

BOLT

- hex, special

8шт.

8

126891A1

BOLT

- hex, special

3шт.

9

202508A1

SCREW

WASHER - spring

11шт.

10

126892A1

BOLT

- hex, special

2шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

12

126895A1

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-5A

1шт.

13

126924A1

STUD

- starter mounting

1шт.

14

1959270C1

WASHER, LOCK

WASHER - lock, 10 mm

1шт.

15

126930A1

NUT

- hex, special

1шт.

16

126927A1

BOLT

- hex, special

1шт.

17

1959269C1

NUT

- 10 mm

1шт.

18

1959162C1

LOCK WASHER

- lock

1шт.
