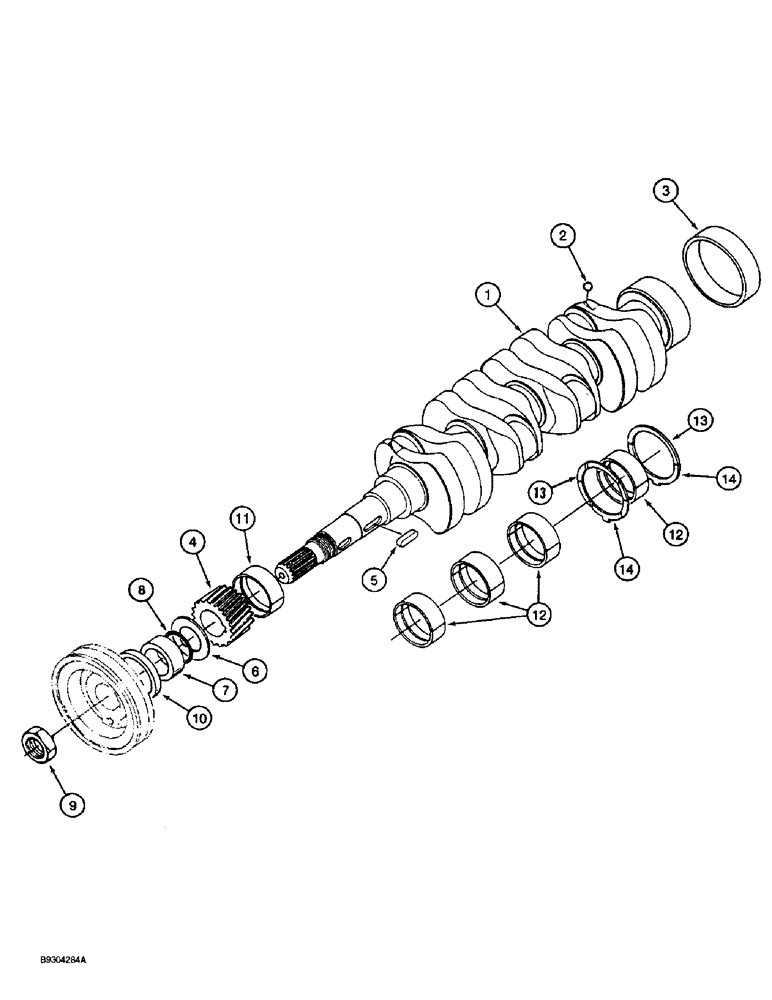

Запчасти Case 560 (2-22) - CRANKSHAFT, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

126512A1

CAMSHAFT

CRANKSHAFT ASSEMBLY - engine, Includes: Ref. 1- 3

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

2

125410A1

BALL

- crankshaft

4шт.

3

126513A1

SLEEVE

- crankshaft

1шт.

4

126514A1

GEAR

- crankshaft

1шт.

5

126492A1

KEY

- feather

1шт.

6

126515A1

SLINGER

- oil

1шт.

7

126875A1

COLLAR

- crankshaft

1шт.

8

126876A1

O-RING

- crankshaft

1шт.

9

126877A1

NUT

- crankshaft

1шт.

10

126878A1

OIL SEAL

SEAL - oil

1шт.

11

126879A1

CRANKSHAFT BEARING

BEARING - main crankshaft 1, standard

1шт.

11

126880A1

CRANKSHAFT BEARING

- main crankshaft 1, 0.20 mm undersize

1шт.

11

126881A1

CRANKSHAFT BEARING

- main crankshaft 1, 0.40 mm undersize

1шт.

12

126882A1

CRANKSHAFT BEARING

- main crankshaft 2, standard

8шт.

12

126883A1

CRANKSHAFT BEARING

- main crankshaft 2, 0.20 mm undersize

8шт.

12

126884A1

CRANKSHAFT BEARING

- main crankshaft 2, 0.40 mm undersize

8шт.

13

125431A1

THRUST BEARING

PLATE - thrust, No. 1 bearing

2шт.

13

125432A1

THRUST BEARING

PLATE - thrust, No. 1 bearing, 0.2 mm oversize

2шт.

13

125433A1

THRUST BEARING

PLATE - thrust, No. 1 bearing, 0.4 mm oversize

2шт.

14

125434A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, standard

2шт.

14

125435A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, 0.2 mm oversize

2шт.

14

125437A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, 0.4 mm oversize

2шт.
