(2-20) - CYLINDER BLOCK ASSEMBLY, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741

Запчасти Case 560 (2-20) - CYLINDER BLOCK ASSEMBLY, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

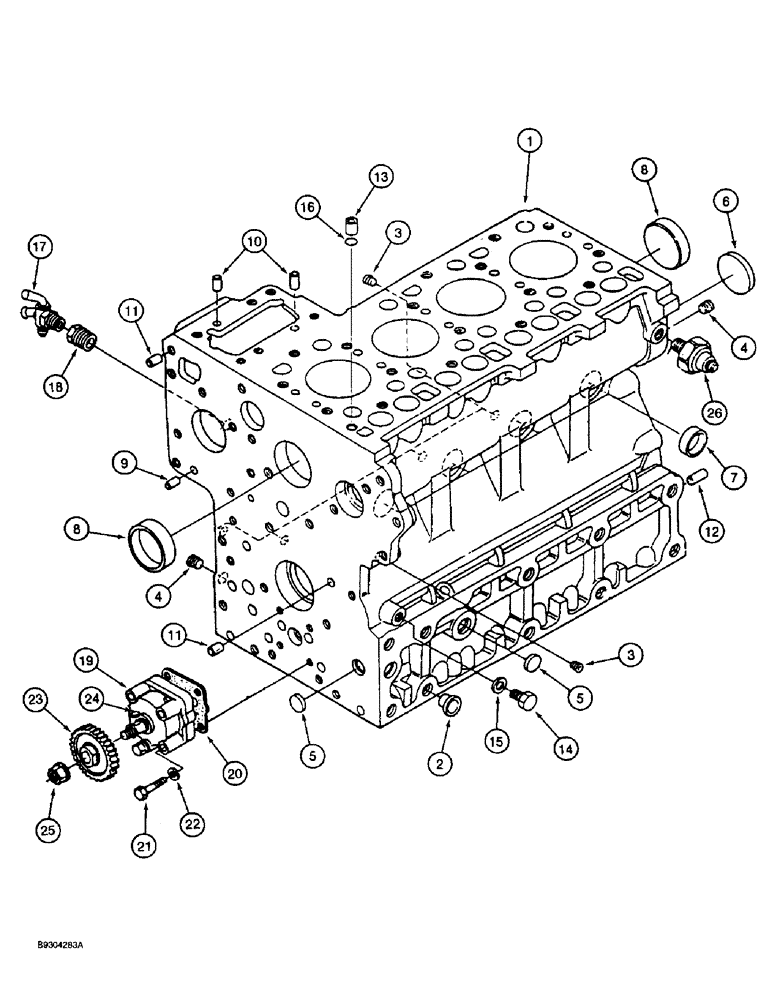

Схема запчастей Case 560 - (2-20) - CYLINDER BLOCK ASSEMBLY, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE
8
5
15
7
11
6
4
21
11
19
1
22
3
12
17
18
4
10
14
2
26
13
23
20
3
5
8
16
9
25
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

221613A1

BLOCK ASSY.

BLOCK ASSEMBLY - cylinder, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

2

125168A1

PLUG

- sealing

2шт.

3

1959127C1

PLUG

- hex socket

6шт.

4

1959128C1

PLUG

- hex socket

2шт.

5

200269A1

PLUG

- expansion

3шт.

6

503206

PLUG

- expansion

1шт.

7

125171A1

CAP

- sealing

6шт.

8

125172A1

CAP

- sealing

2шт.

9

125173A1

PIN

- straight

2шт.

10

1959129C1

PIN

- straight

2шт.

11

125174A1

PIN

- straight

2шт.

12

125175A1

PIN

- straight

1шт.

13

1959132C1

PIN

- pipe

1шт.

14

125176A1

PLUG

- sealing

1шт.

15

1959329C1

WASHER

GASKET - plug

1шт.

16

1959135C1

O-RING,6.57mm ID x 2.325mm Width

- sealing, pipe pin

1шт.

17

125177A1

DRAIN VALVE

VALVE - drain

1шт.

18

125178A1

GASKET

ADAPTER - drain valve

1шт.

19

125179A1

PUMP

- oil

1шт.

20

125181A1

GASKET

- oil pump

1шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

4шт.

22

221638A1

SPRING WASHER

- spring, special

4шт.

23

125182A1

GEAR

- oil pump drive

1шт.

24

1959156C1

KEY

- feather, oil pump

1шт.

25

125183A1

FLANGE NUT

- flange, special

1шт.

26

1959159C1

PRESSURE SWITCH

SWITCH - engine oil pressure

1шт.

114369A2

MOTOR

ENGINE ASSEMBLY - Kubota V2203 Engine, complete

1шт.
