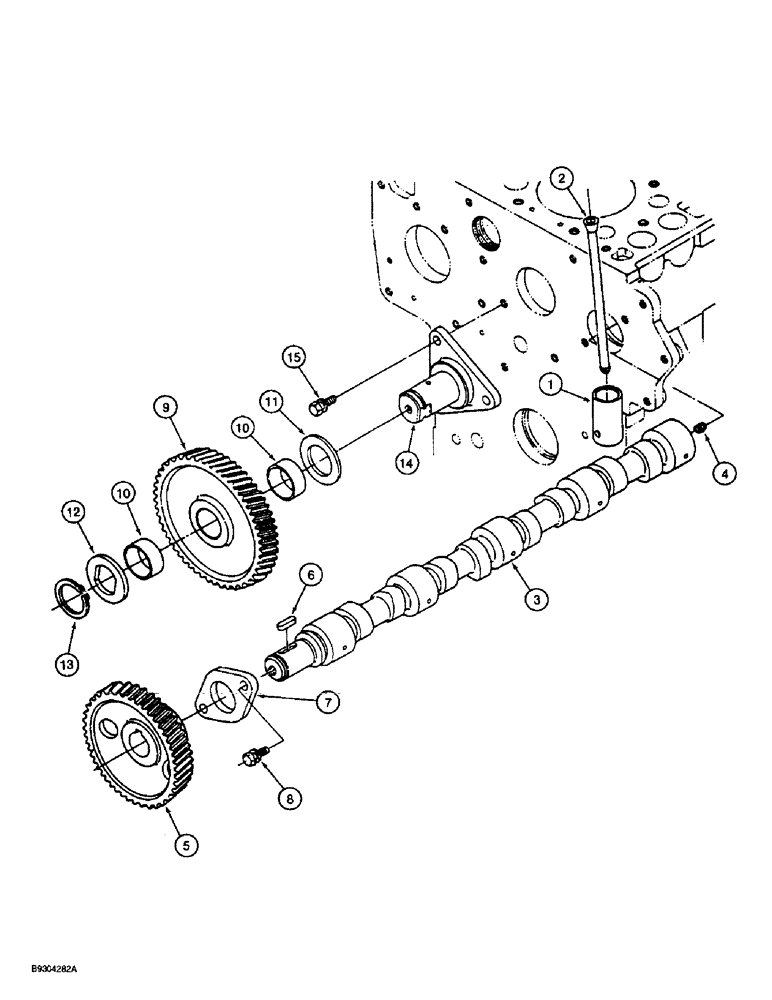

Запчасти Case 560 (2-19A) - CAMSHAFT, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

1

202268A1

TAPPET

- push rod

8шт.

2

126447A1

ROD

- push

8шт.

126448A1

CAMSHAFT

ASSEMBLY - engine, Includes: Ref. 3 - 7

1шт.

3

126489A1

CAMSHAFT

- engine

1шт.

4

125339A1

SCREEN

SCREW - set

1шт.

5

126491A1

CAMSHAFT

GEAR - camshaft

1шт.

6

126492A1

KEY

- feather

1шт.

7

126493A1

STOP

PLATE - camshaft, stopper

1шт.

8

1959322C1

BOLT

- hex, special

2шт.

368573A1

GEAR, IDLER

GEAR ASSEMBLY - idler, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

10

368574A1

BUSHING

- idler gear

2шт.

11

368575A1

COLLAR

- idler gear

1шт.

12

368576A1

COLLAR

- idler gear

1шт.

13

368577A1

CLIP

RING - snap

1шт.

14

368578A1

SHAFT

- idler gear

1шт.

15

1959322C1

BOLT

- hex, special

3шт.
