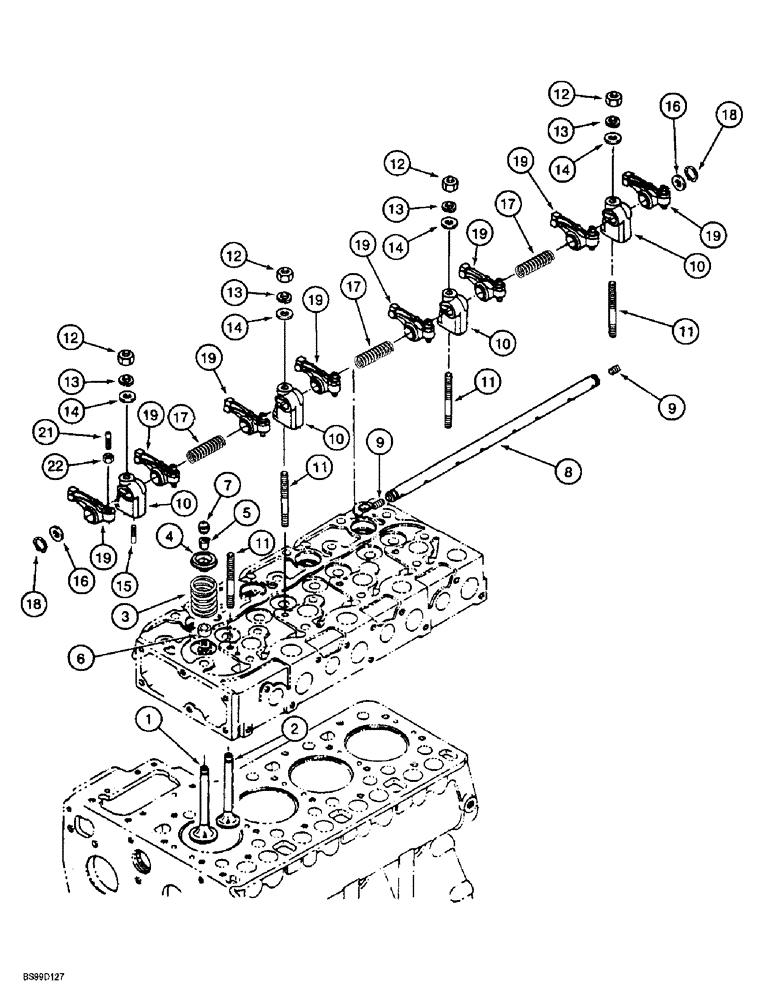

Запчасти Case 560 (2-17A) - VALVE MECHANISM AND ROCKER ARMS, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

1

202292A1

VALVE,ENGINE,INLET,S

VALVE - inlet

4шт.

2

202293A1

VALVE, ENG EXHAUST,

VALVE - exhaust

4шт.

3

126418A1

VALVE SPRING

SPRING - valve

8шт.

4

126419A1

RETAINER

- valve spring

8шт.

5

126421A1

COLLAR

KEEPER - valve spring

16шт.

6

126422A1

SEAL

- valve stem

8шт.

7

126423A1

CAP

- valve

8шт.

202299A1

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - rocker arm

1шт.

9

202300A1

SCREEN

SCREW - set

2шт.

10

126426A1

BRACKET

- rocker arm

4шт.

11

126437A1

STUD

- rocker arm bracket

4шт.

12

126373A1

SPRING WASHER

WASHER - flat

4шт.

13

1959162C1

LOCK WASHER

- lock

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

15

202303A1

SPLIT PIN/SAFETY PIN

SCREW - set

1шт.

16

126439A1

WASHER

- flat

2шт.

17

126440A1

SPRING

- rocker arm

3шт.

18

126441A1

SNAP RING

RING - snap

2шт.

202307A1

HEATED GLASS

ARM ASSEMBLY - rocker, Includes: Ref. 19 - 22

8шт.

19

NSS

NOT SOLD SEPARAT

ARM - rocker

1шт.

21

126444A1

ADJUSTMENT SCREW

- adjusting

1шт.

22

126445A1

NUT

- hex, special

1шт.
