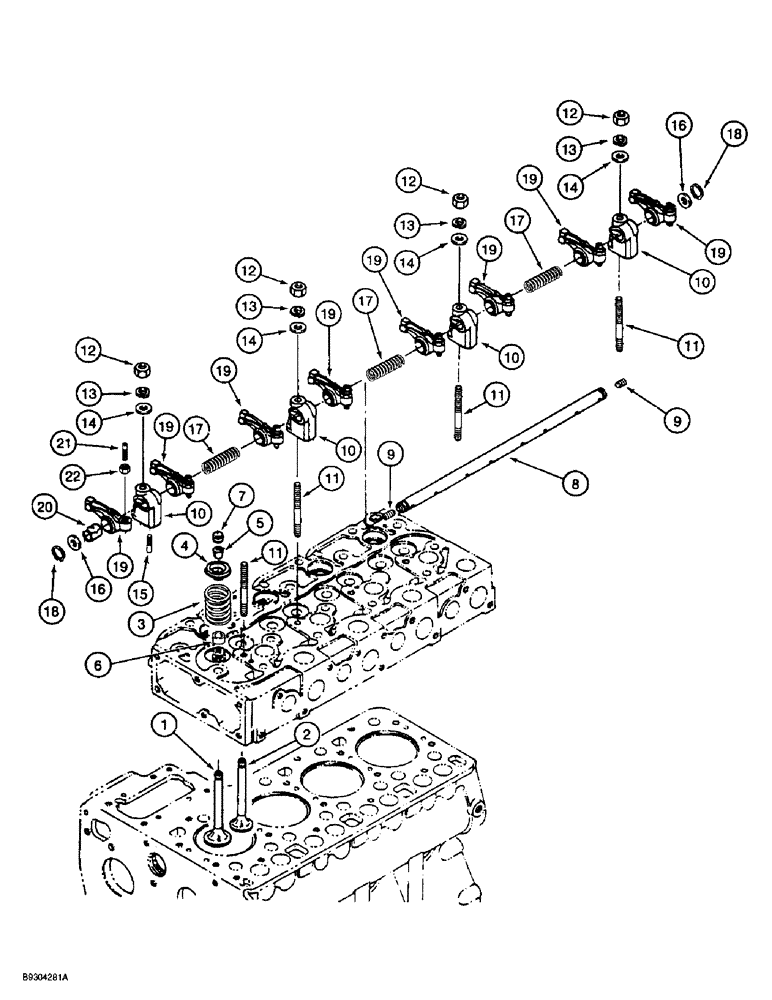

Запчасти Case 560 (2-16) - VALVE MECHANISM AND ROCKER ARMS, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

1

126416A1

VALVE

- inlet

4шт.

2

126417A1

VALVE

- exhaust

4шт.

3

126418A1

VALVE SPRING

SPRING - valve

8шт.

4

126419A1

RETAINER

- valve spring

8шт.

5

126421A1

COLLAR

KEEPER - valve spring

16шт.

6

126422A1

SEAL

- valve stem

8шт.

7

126423A1

CAP

- valve

8шт.

126424A1

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - rocker arm

1шт.

9

126425A1

SET SCREW

SCREW - set

2шт.

10

126426A1

BRACKET

- rocker arm

4шт.

11

126437A1

STUD

- rocker arm bracket

4шт.

12

126373A1

SPRING WASHER

WASHER - flat

4шт.

13

1959162C1

LOCK WASHER

- lock

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

15

126438A1

SET SCREW

SCREW - set

1шт.

16

126439A1

WASHER

- flat

2шт.

17

126440A1

SPRING

- rocker arm

3шт.

18

126441A1

SNAP RING

RING - snap

2шт.

126442A1

ARM ASSY.

ARM ASSEMBLY - rocker, Includes: Ref. 19 - 20

8шт.

19

NSS

NOT SOLD SEPARAT

ARM - rocker

1шт.

20

126443A1

BUSHING

- rocker arm

1шт.

21

126444A1

ADJUSTMENT SCREW

- adjusting

1шт.

22

126445A1

NUT

- hex, special

1шт.
