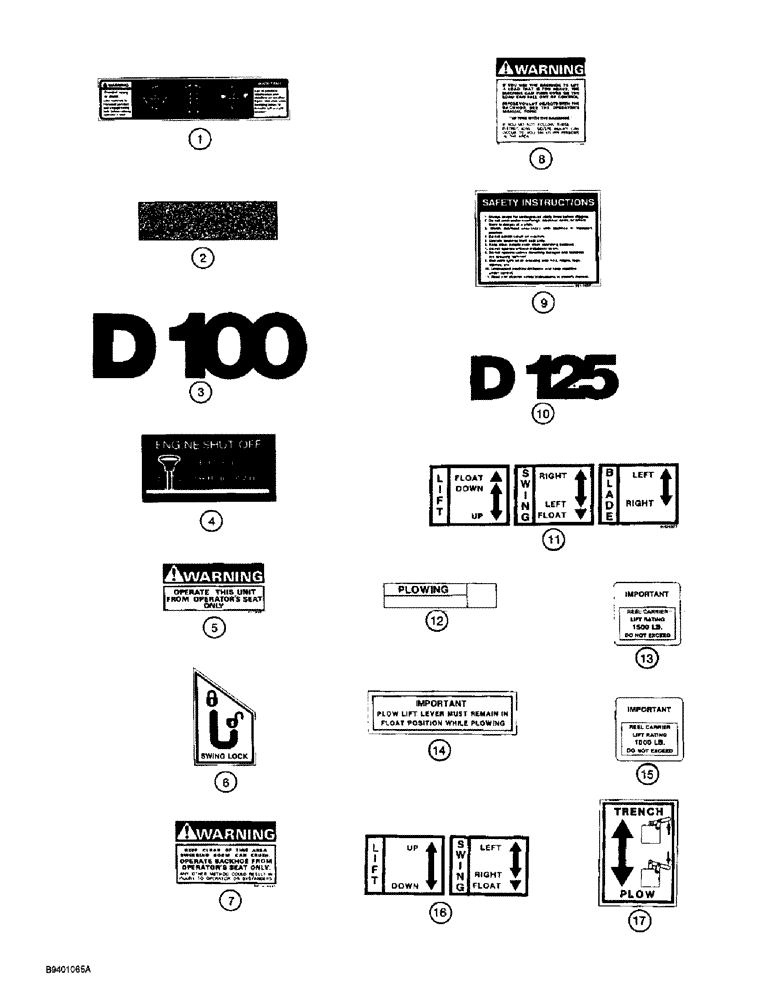

Запчасти Case 560 (9-142) - BACKHOE, PLOW, REEL CARRIER, AND QUAD DECALS (09) - CHASSIS/ATTACHMENTS

1

321-7038

DECAL

- backhoe control pattern

1шт.

2

H386334

FLOOR MAT

STRIP - anti-skid, backhoe foot rests

2шт.

3

H427559

DECAL

- model, D100 BACKHOE

2шт.

4

H434268

DECAL

- engine shut-off BACKHOE

1шт.

5

321-3905

DECAL

- Warning, operate this unit from operator's seat only BACKHOE

2шт.

6

H439359

DECAL

- swing lock BACKHOE

1шт.

7

321-4481

DECAL

- Warning, keep clear of this area, swinging boom can crush BACKHOE

2шт.

8

321-6046

WARNING DECAL

DECAL, WARNING, If you use the backhoe to lift a load that is too heavy

1шт.

9

321-7037

DECAL

- Warning, incorrect operation of this backhoe can result in injury or death

1шт.

10

104363A1

DECAL

- D125, model number, brown BACKHOE

2шт.

10

179265A1

DECAL

- D125, model number, gray BACKHOE

2шт.

11

H434977

DECAL

- plow control pattern, lift/swing/blade, P85 plow REEL CARRIER, AND QUAD

1шт.

12

H435035

DECAL

- plowing, brown letters REEL CARRIER, AND QUAD

1шт.

12

178943A1

DECAL

- plowing, black letters REEL CARRIER, AND QUAD

1шт.

13

H438398

DECAL

- Important, reel carrier lift rating, 1500 lb, brown with white letters PLOW AND QUAD

3шт.

13

190335A1

DECAL

- Important, reel carrier lift rating, 1500 lb, black with white letters PLOW AND QUAD

3шт.

14

H436751

DECAL

- Important, plow lift lever, brown with white letters REEL CARRIER AND QUAD

1шт.

14

178939A1

DECAL

- Important, plow lift lever, black with white letters REEL CARRIER AND QUAD

1шт.

15

124012A1

DECAL

- Important, reel carrier lift rating, 1000 lb, brown with white letters PLOW AND QUAD

3шт.

15

190334A1

DECAL

- Important, reel carrier lift rating, 1000 lb, black with white letters PLOW AND QUAD

3шт.

16

127447A1

DECAL

- plow control pattern, lift/swing, P75 plow REEL CARRIER AND QUAD

1шт.

17

129690A1

DECAL

- quad select, trench/plow, brown with white letters REEL CARRIER

1шт.

17

180467A1

DECAL

- quad select, trench/plow, black with white letters REEL CARRIER

1шт.
