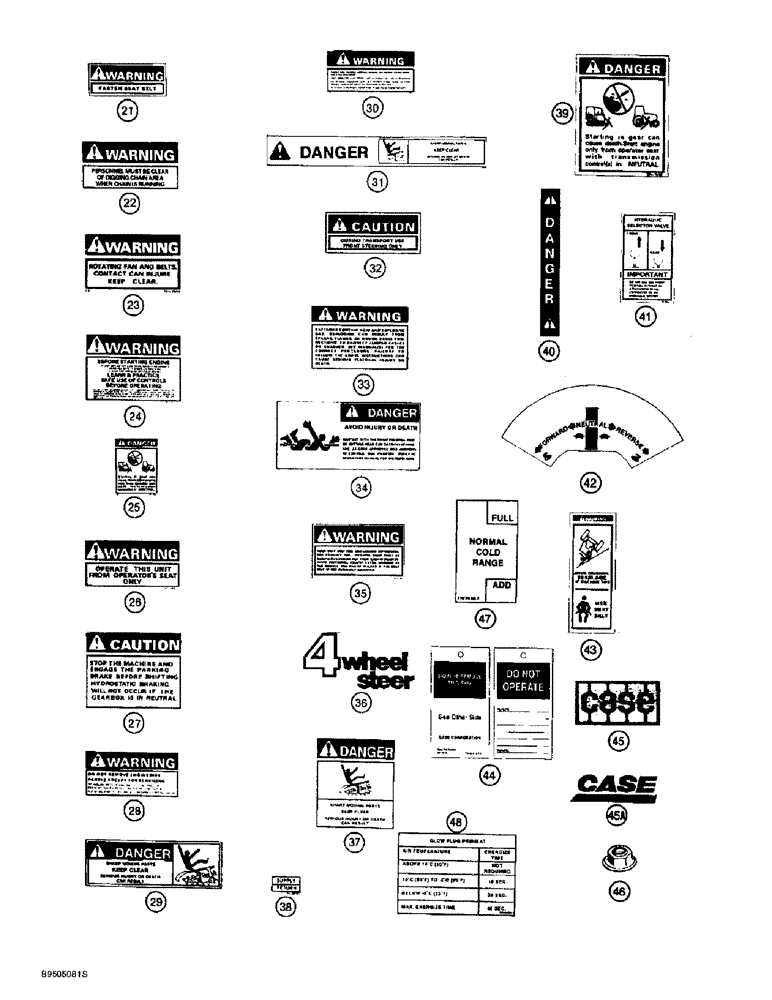

Запчасти Case 560 (9-140) - DECALS (09) - CHASSIS/ATTACHMENTS

21

321-3060

DECAL

- Warning, fasten seat belt, this decal is a part of H438325 and 178944A1 decals, Ref. 8 on Figure 9-138

1шт.

22

321-3214

DECAL

- Warning, personnel must be clear of digging chain

3шт.

23

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

24

321-3705

DECAL

- Warning, before starting engine

1шт.

25

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

26

321-3905

DECAL

- Warning, operate this unit from operator's seat only

1шт.

27

321-5501

DECAL

- Caution, stop the machine

2шт.

28

321-5701

DECAL

- Warning, do not remove engine side panels

2шт.

29

H438999

DECAL

- Danger, sharp moving parts, keep clear, located on crumber mounting bracket

2шт.

30

321-6672

DECAL

- Warning, check and service cooling system

1шт.

31

H438909

DECAL

- Danger, sharp moving parts, keep clear, 60 x 470 mm long, located on crumber boom

2шт.

32

321-6710

DECAL

- Caution, during transport use front steering only, this decal is a part of H438325 and 178944A1 decals, Ref. 8 on Figure 9-138

1шт.

33

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

34

124016A1

DECAL

- Danger, avoid injury or death

2шт.

35

321-6746

DECAL

- Warning, your seat belt has non-locking retractors

1шт.

36

H433813

DECAL

- 4 wheel steer, brown letters

2шт.

36

179076A1

DECAL

- 4 wheel steer, gray letters

2шт.

37

H438908

DECAL

- Danger, sharp moving parts, keep clear, 110 x 110 mm long, located on trencher frame

3шт.

38

H438522

DECAL

- supply, return

2шт.

39

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

40

H438910

DECAL

- Danger

1шт.

41

H438563

DECAL

- hydraulic selector valve, brown with white letters

1шт.

41

178941A1

DECAL

- hydraulic selector valve, black with white letters

1шт.

42

110529A1

DECAL

- ground drive controls, brown letters and symbols

1шт.

42

178986A1

DECAL

- ground drive controls, black letters and symbols

1шт.

43

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

2шт.

44

321-4614

TAG

- do not operate

1шт.

45

321-4739

EMBLEM

- Case, if used

1шт.

45a

186989A1

EMBLEM

- Case, if used

1шт.

46

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type, on type, special

2шт.

47

115748A1

DECAL

- coolant level

1шт.

48

122309A1

DECAL

- glow plug preheat, brown with white letters

1шт.

48

179826A1

DECAL

- glow plug preheat, gray with white letters

1шт.
