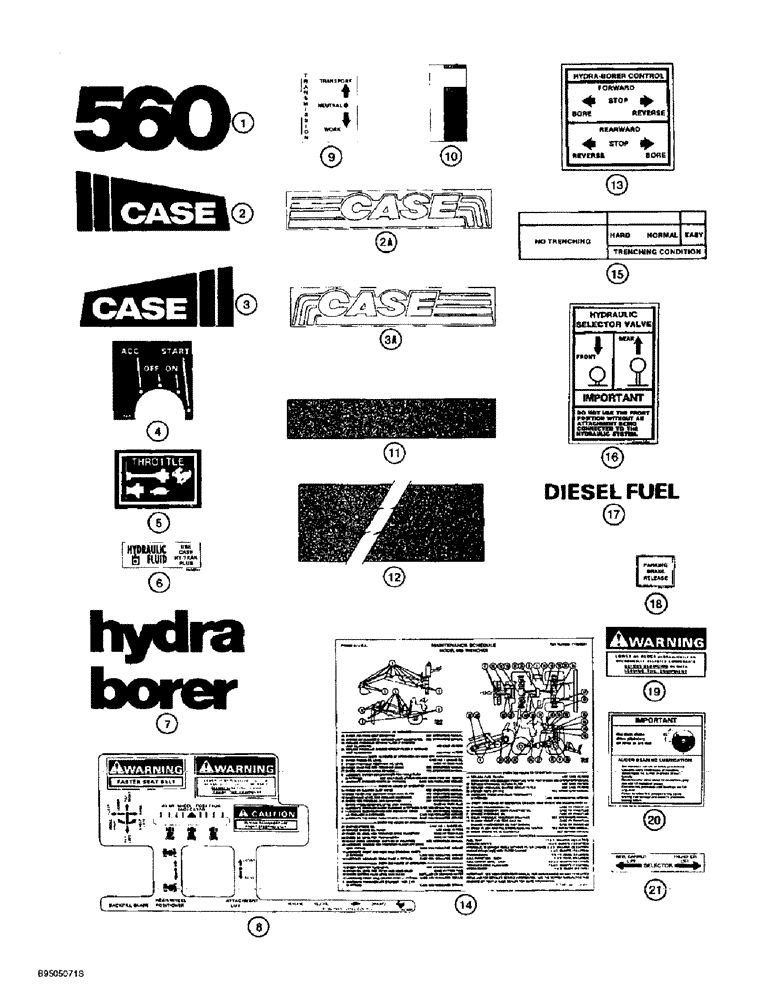

Запчасти Case 560 (9-138) - DECALS (09) - CHASSIS/ATTACHMENTS

1

H438242

DECAL

- 560, model number, brown

2шт.

1

179120A1

DECAL

- 560, model number, gray

2шт.

2

114751A1

DECAL

- Case, with treads, right-hand, brown

1шт.

2a

187112A1

DECAL

- Case, with stripes, right-hand, gray

1шт.

3

114750A1

DECAL

- Case, with treads, left-hand, brown

1шт.

3a

187111A1

DECAL

- Case, with stripes, left-hand, gray

1шт.

4

D123946

DECAL

- ignition switch pattern, brown with white letters

1шт.

4

140219A2

DECAL

- ignition switch pattern, black with white letters

1шт.

5

321-5288

DECAL

- throttle

1шт.

6

H438541

DECAL

- hydraulic fluid, use Case hy-tran plus

1шт.

7

H427880

DECAL

- hydra-borer

1шт.

8

H438325

DECAL

- side console, attachments, rear wheel positioner and rear wheel position indicator, brown with white letters, also includes Ref. 19, 21, and 32, see note

1шт.

8

178944A1

DECAL

- side console, attachments, rear wheel positioner and rear wheel position indicator, black with white letters, also includes Ref. 19, 21 and 32, see note

1шт.

9

H438323

DECAL

- shift pattern, brown with white letters

1шт.

9

178937A1

DECAL

- shift pattern, black with white letters

1шт.

10

109715A1

DECAL

- hydraulic oil reservoir level

1шт.

11

H431171

ADHESIVE STRIP

STRIP - anti-skid, 406 mm (16 inch) long, cut from H431205 bulk strip, hydraulic oil reservoir, see below

3шт.

12

110528A1

ADHESIVE STRIP

STRIP - anti-skid, 318 mm (12-1/2 inch) long, cut from H431205 bulk strip, hydraulic oil reservoir and battery box cover, see below

3шт.

13

H434251

DECAL

- hydra-borer control

1шт.

14

115852A1

DECAL

- maintenance schedule

1шт.

15

H434352

DECAL

- trenching chainline speed control pattern, brown letters

1шт.

15

178936A1

DECAL

- trenching chainline speed control pattern, black letters

1шт.

16

H434356

DECAL

- hydraulic selector valve

1шт.

17

321-230

DECAL

- diesel fuel

1шт.

18

H418020

DECAL

- parking brake release

1шт.

19

321-3042

DECAL

- Warning, lower or block hydraulically or mechanically, this decal is a part of H438325 and 178944A1 decals, Ref. 8

1шт.

20

H437833

DECAL

- Important, maintain chain drive planetary oil level

1шт.

21

H439403

DECAL

- selector, reel carrier lift/trencher lift, brown with white letters

1шт.

21

180466A1

DECAL

- selector, reel carrier lift/trencher lift, black with white letters

1шт.

H431205

ADHESIVE STRIP

STRIP - anti-skid, bulk, 635 mm (25 inch) long

1шт.

Continued on next Figure
