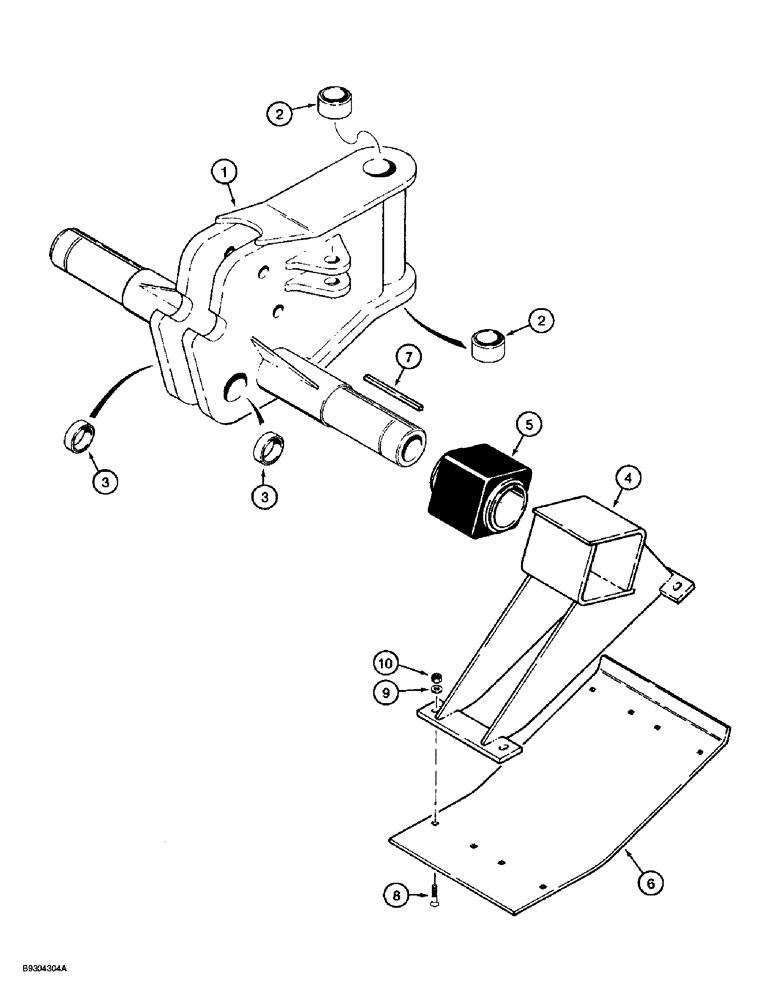

Запчасти Case 560 (9-130) - PLOW BLADE MOUNTING BRACKET AND PLOW SKID SHOES, P85 PLOW (09) - CHASSIS/ATTACHMENTS

105966A1

MOUNTING PARTS

BRACKET - plow blade mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - plow blade mounting

1шт.

2

105870A1

BUSHING

- upper and lower

2шт.

3

H437099

BUSHING

- bracket, sides

2шт.

H674485

SHOE (ASSY)

SHOE ASSEMBLY - skid, Includes: Ref. 4 and 5

2шт.

4

H674486

SHOE (ASSY)

SHOE - skid

1шт.

5

H230862

SHOCK ABSORBER

MOUNT - rubber, skid shoe

1шт.

6

H437946

LARGE PLATE

PLATE - skid shoe, 12 inch wide

2шт.

7

H386482

KEY

- square

1шт.

8

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

BOLT - plow, 3/8 NC x 1-1/2 inch

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

10

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.
