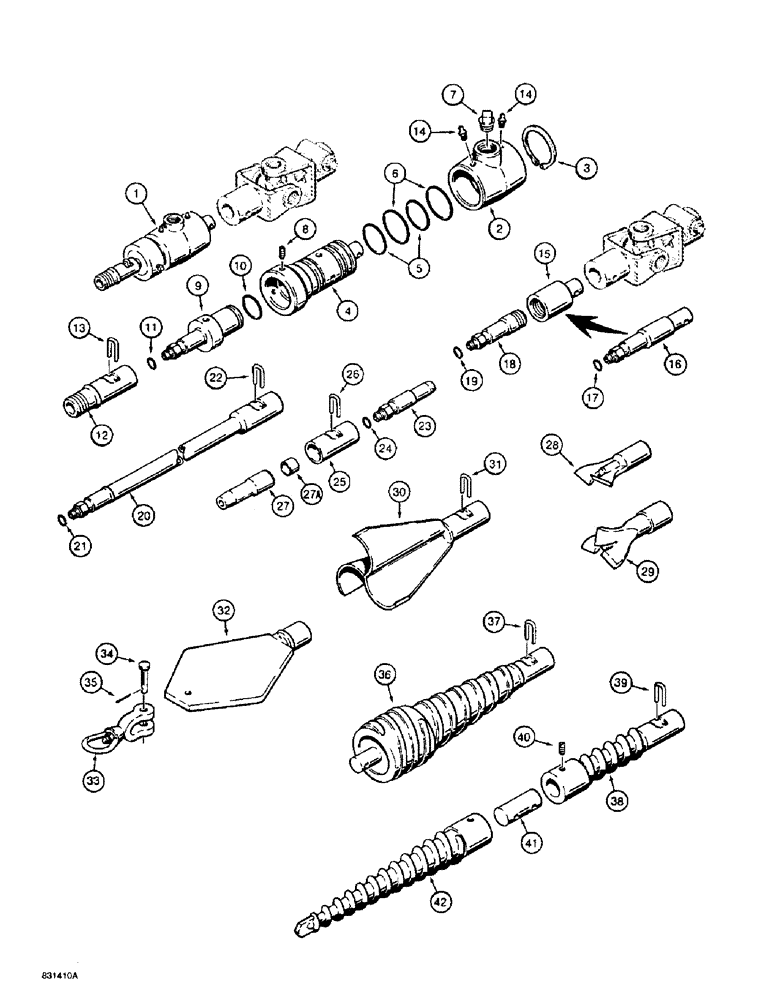

Запчасти Case 560 (9-112) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H522367

COUPLING

COUPLER ASSEMBLY - water, wet boring, attaches to U-joint on gearbox, Includes: Ref. 2 - 14

1шт.

2

H84228

RING

BODY - coupler

1шт.

3

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Coupler #225, Ext

1шт.

4

H84236

COUPLING

COUPLER - water

1шт.

5

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

RING - seal backup

2шт.

6

H749317

OIL SEAL

SEAL - coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT, used for dry boring, if used

1шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

3шт.

9

H522359

ADAPTER

COUPLER - quick lock, male

1шт.

10

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Coupler, large -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

12

H522375

ADAPTER

- drill stem, quick lock, female to 1 inch PT

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

13

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

2шт.

15

H83352

ADAPTER

- dry boring, 1 inch PT, Serial Range: attaches-U-joint

1шт.

16

H646901

ADAPTER

- dry boring, quick lock male, Serial Range: attaches-U-joint

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

18

H522383

ADAPTER

- 1 inch PT to quick lock male

1шт.

20

H672563

EXTENSION

STEM - drill, quick lock, 5 foot long

1шт.

20

H672562

ADAPTER

STEM - drill, quick lock, 10 foot long

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

22

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

23

H434273

NIPPLE, LUBE

COUPLER - quick lock, male

1шт.

H672594

COUPLING

COUPLER ASSEMBLY - quick lock, female

1шт.

25

H434272

COUPLING

COUPLER - quick lock, female, no longer available, order H672594 coupler assembly

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - shaft, O-ring seat, order H672594 coupler assembly

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - stub, order H672594 coupler assembly

1шт.

27a

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

28

H518837

BIT

- drill, two blade, 2 inch blade dia x 1 inch female PT

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

28

H518910

BIT

- drill, two blade, 3 inch blade dia x 1 inch female PT

1шт.

29

H519249

BIT

- drill, three blade, 3 inch blade dia x 1 inch female PT

1шт.

30

H522441

REAMER

BACKREAMER - quick lock female, 8 inch

1шт.

30

H522466

REAMER

BACKREAMER - quick lock female, 12 inch

1шт.

31

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

32

H519652

REAMER

- fish plate, 6 inch

1шт.

32

H519504

REAMER

- fish plate, 4 inch

1шт.

32

H528497

REAMER

- fish plate, 8 inch

1шт.

33

H88195

FASTENER

SWIVEL - reamer

1шт.

34

H32284

AXLE PIN

PIN - clevis, 3/8 x 1-3/4 inch long

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

36

H522409

REAMER

- compaction, quick lock female, 3-3/4 inch

1шт.

37

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

38

H522433

BIT

- compaction, quick lock female, 2 inch

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

39

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

40

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch

2шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

41

H85233

COUPLING

COUPLER - bit

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

42

H84988

BIT

- compaction, end, 2 inch, end

1шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-110 for additional parts.

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Coupler, small

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Drill stem

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
