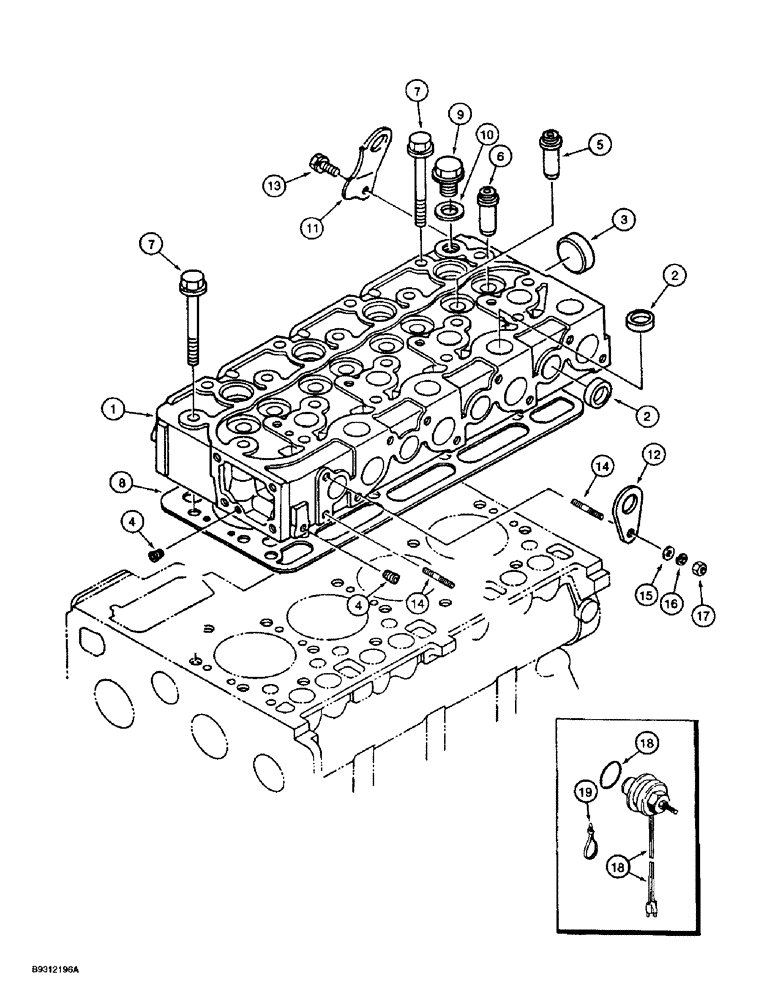

Запчасти Case 560 (2-14) - CYLINDER HEAD, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

1

125203A1

HEAD ASSY.

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 6

1шт.

2

125204A1

CAP

- sealing

12шт.

3

1959125C1

PLUG

CAP - sealing

1шт.

4

1959126C1

PLUG

- hex socket

2шт.

5

125205A1

GUIDE

- inlet valve

4шт.

6

125206A1

GUIDE

- exhaust valve

4шт.

7

125207A1

BOLT,Cyl Hd

- cylinder head

18шт.

8

125208A1

CYLINDER HEAD GASKET

- cylinder head

1шт.

9

125209A1

PLUG

- hex, cylinder head

1шт.

10

125211A1

RUBBER WASHER

- plug

1шт.

11

125202A1

HOOK

BRACKET - lifting

1шт.

12

1959151C1

HOOK

BRACKET - lift

1шт.

13

1959163C1

BOLT

- hex, special

1шт.

14

1959457C1

STUD

- lift bracket

2шт.

15

126373A1

SPRING WASHER

WASHER - flat

1шт.

16

1959162C1

LOCK WASHER

- lock

1шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

18

117492A1

HEATER

- engine block, used in place of Ref. 3, cap, if used

1шт.

Engine block heater and tie strap are not included with the engine assembly.

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, engine block heater wire

2шт.

Engine block heater and tie strap are not included with the engine assembly.

1шт.
