(9-110) - HYDRA-BORER DRILL STEM LEVEL FRAME

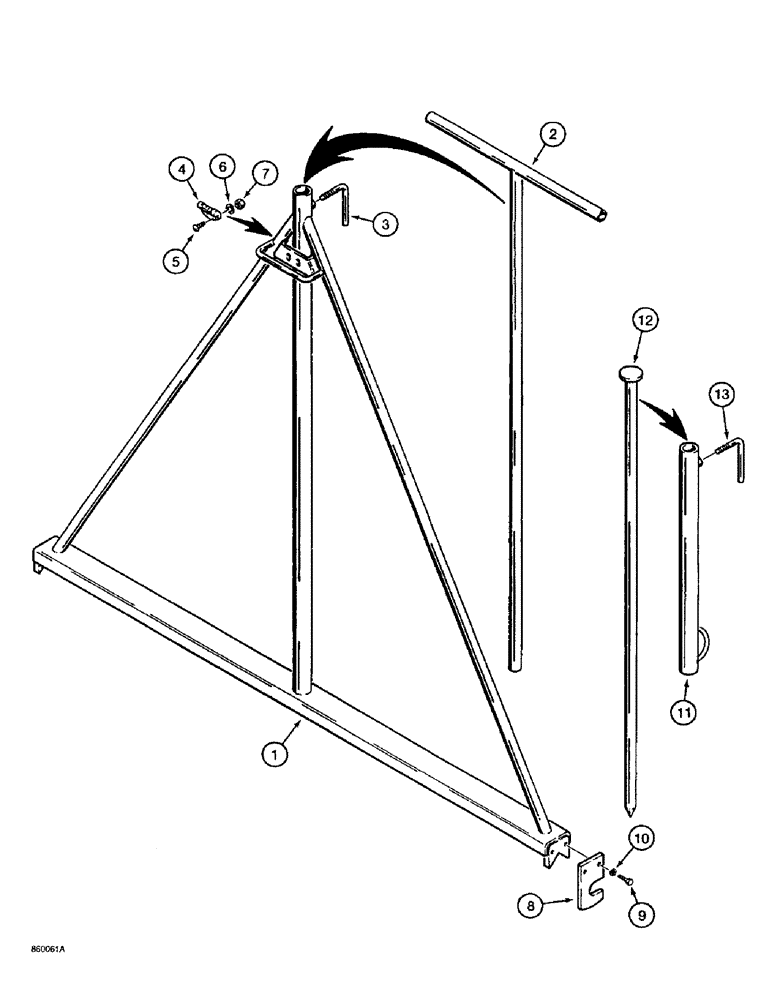

Запчасти Case 560 (9-110) - HYDRA-BORER DRILL STEM LEVEL FRAME (09) - CHASSIS/ATTACHMENTS

Схема запчастей Case 560 - (9-110) - HYDRA-BORER DRILL STEM LEVEL FRAME (09) - CHASSIS/ATTACHMENTS
5
4
8
1
10
9
13
2
12
6
11
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H521377

STEM

FRAME - drill stem level

1шт.

2

H521385

HANDLE

- frame

1шт.

3

H71472

TUBE,0.375" OD x 3.25, 2.25" L

LOCK - handle adjustment

1шт.

4

H346015

LEVEL

- frame

1шт.

5

182-8

SCREW

- machine, pan head slotted, No. 4 NC x 5/8 inch

2шт.

6

492-11004

LOCK WASHER,#4

Washer, Lock, #4

2шт.

7

225-14104

NUT,#4-40

2шт.

8

H92544

GUIDE

- drill stem

2шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

H511139

TUBE

- guide anchor

2шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-112 for additional parts.

1шт.

12

H511121

GUIDE

SHAFT - guide anchor

2шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-112 for additional parts.

1шт.

13

H71472

TUBE,0.375" OD x 3.25, 2.25" L

LOCK - tube adjustment

2шт.

Component of 185583A1 Hydra-Borer basic application kit. See Figure 9-112 for additional parts.

1шт.
