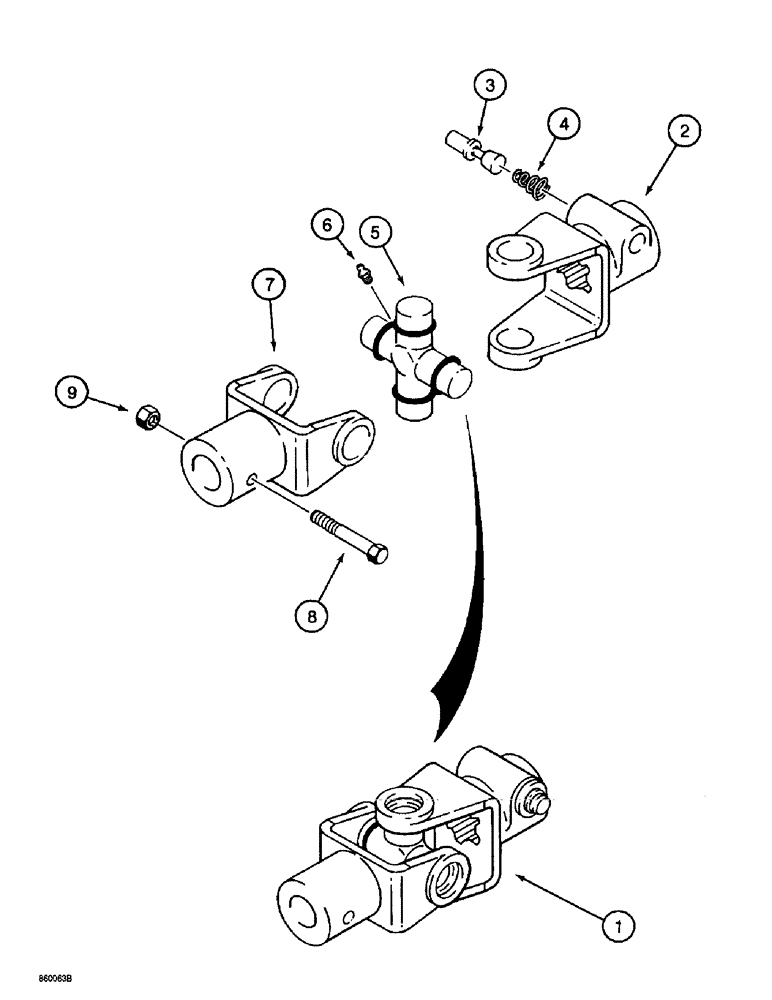

Запчасти Case 560 (9-108) - HYDRA-BORER ATTACHMENT UNIVERSAL JOINT (09) - CHASSIS/ATTACHMENTS

1

H511113

JOINT

U-JOINT ASSEMBLY - Hydra-Borer attachment, no longer available, service with component parts below

1шт.

H71142

YOKE

ASSEMBLY - splined, mounts to gearbox, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE - splined, Serial Range: mounts-gearbox

1шт.

H658179

SET OF PARTS

KIT - universal joint retaining, Includes: Ref. 3 and 4

1шт.

H658179 KIT HAS 1 3/4" LONG PIN. IF CUSTOMER PIN IS 2 1/4", KIT IS 182951A1. PER VENDOR, 182591A1 IS CORRECT KIT FOR THE H511113 U-JOINT ASSY. 12/11/98 BW CAM

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - special

1шт.

H71167

JOURNAL

CROSS ASSEMBLY - universal joint, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CROSS - U-joint

1шт.

6

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 15/16 inch

1шт.

7

H71159

YOKE

- boring attachments

1шт.

8

424-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

- hex, 3/8 NC x 2-1/2 inch, grade 2

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.
