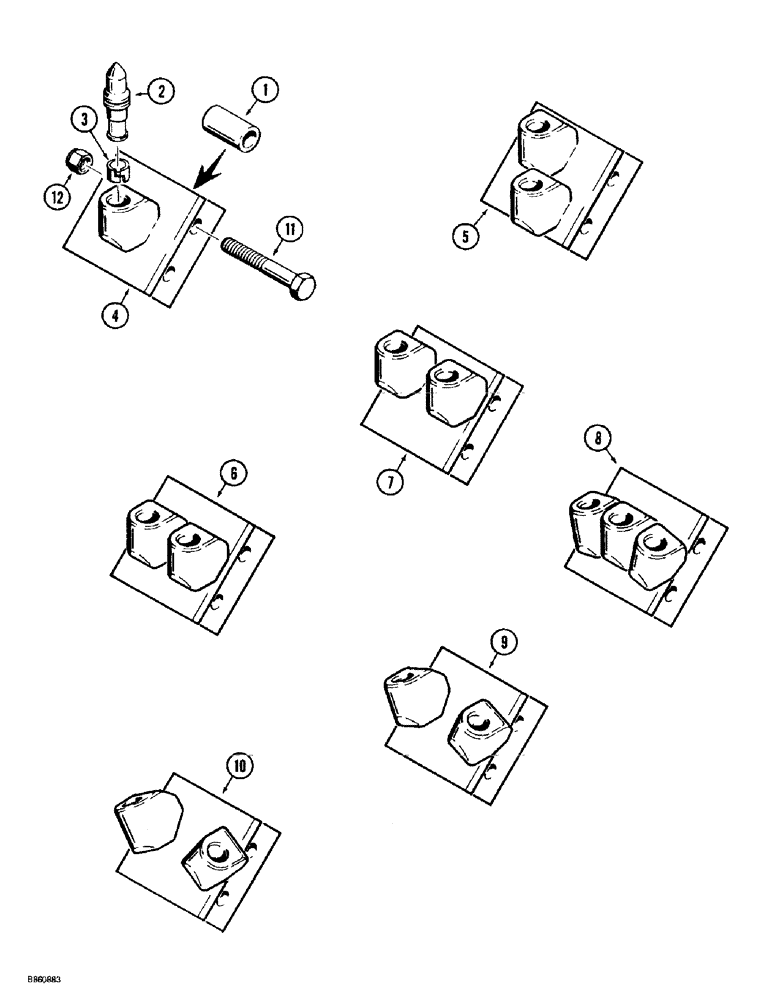

Запчасти Case 560 (9-090) - ROCK AND FROST DIGGING TEETH, 50,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H138008

SPACER

- tubular, 1 x 1-25/32 inch, cutter bit

1шт.

2

H270983

TOOTH

BIT - cutter, standard tip, C-1 bit

1шт.

2

H283770

TOOTH

BIT - cutter, heavy-duty tip, C-3 bit

1шт.

3

H283754

CLIP

- bit retaining, included with H270983 and H283770 cutter bits

1шт.

4

H595629

BRACKET

- cutter bit, single

1шт.

5

H595637

BRACKET

- cutter bit, 25 mm (1 inch) bit spacing

1шт.

6

H595645

BRACKET

- cutter bit, 51 mm (2 inch) bit spacing

1шт.

7

H595652

BRACKET

- cutter bit, 76 mm (3 inch) bit spacing

1шт.

8

H595660

BRACKET

- cutter bit, 102 mm (4 inch) bit spacing

1шт.

9

H595678

BRACKET

- cutter bit, 127 mm (5 inch) bit spacing

1шт.

10

H595686

BRACKET

- cutter bit, 152 mm (6 inch) bit spacing

1шт.

11

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

12

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.
