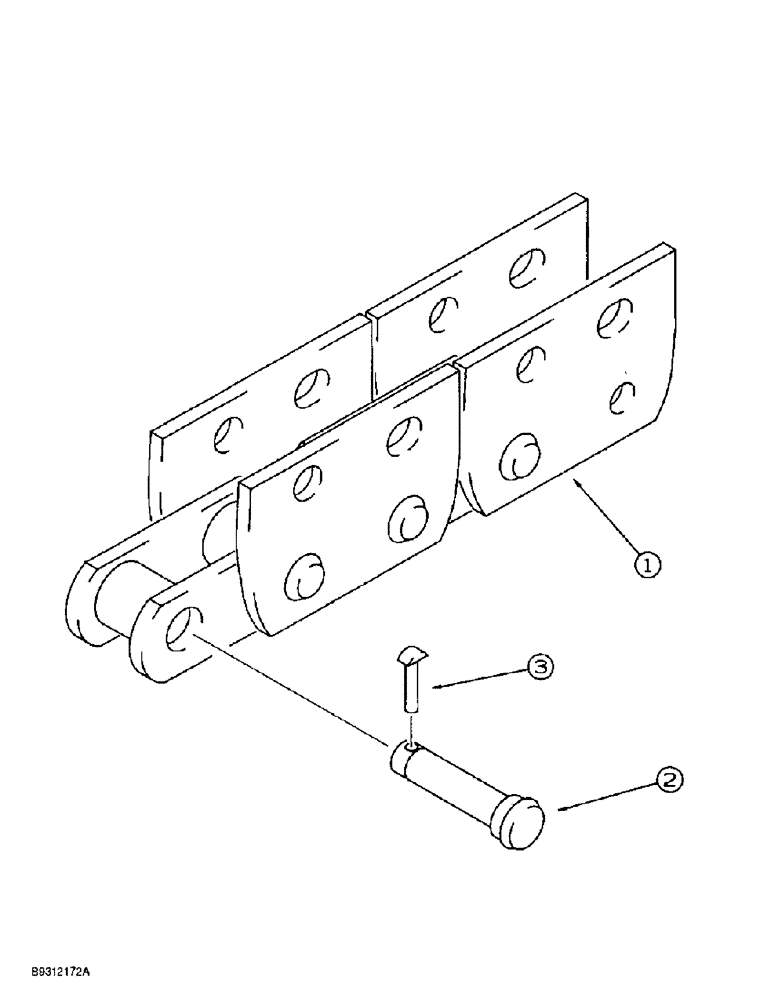

Запчасти Case 560 (9-082) - ANTI-BACKFLEX DIGGING CHAINS, 75,000 POUND CHAINLINE, FOR 4 FOOT DIGGING DEPTH BOOM (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1333302A1
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 58 pitches, Includes: Ref. 1 - 3, FOR 4 FOOT DIGGING DEPTH BOOM
1шт.
Used on direct drive trenchers.
1шт.
1
126113A1
CHAIN (AG)
CHAIN ASSEMBLY - digging, anti-backflex, 58 pitches, Includes: Ref. 2 and 3
1шт.
Used on direct drive trenchers.
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retianing, chain
1шт.
111501A1
CHAIN (CE)
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 70 pitches, Includes: Ref. 1 - 3, FOR 4 FOOT DIGGING DEPTH BOOM
1шт.
Used on planetary drive trenchers.
1шт.
1
117312A1
CHAIN (AG)
CHAIN - digging, anti-backflex, 70 pitches, Includes: Ref. 2 and 3
1шт.
Used on planetary drive trenchers.
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
133302A1
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 58 pitches, Includes: Ref. 1 - 3, FOR 5 FOOT DIGGING DEPTH BOOM
1шт.
Used on direct drive trenchers.
1шт.
1
126113A1
CHAIN (AG)
CHAIN ASSEMBLY - digging, anti-backflex, 58 pitches, Includes: Ref. 2 and 3
1шт.
Used on direct drive trenchers.
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
11501A1
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 70 pitches, Includes: Ref. 1 - 3, FOR 5 FOOT DIGGING DEPTH BOOM
1шт.
Used on planetary drive trenchers.
1шт.
1
117312A1
CHAIN (AG)
CHAIN - digging, anti-backflex, 70 pitches, Includes: Ref. 2 and 3
1шт.
Used on planetary drive trenchers.
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
H939322
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 10 pitches, Includes: Ref. 1 - 3, FOR 5 FOOT DIGGING DEPTH BOOM
1шт.
1
102046A1
CHAIN (AG)
CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, Includes: Ref. 2 and 3
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
111501A1
CHAIN (CE)
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 70 pitches, Includes: Ref. 1- 3, FOR 6 FOOT DIGGING DEPTH BOOM
1шт.
Used on planetary drive trenchers.
1шт.
1
117312A1
CHAIN (AG)
CHAIN - digging, anti-backflex, 70 pitches, Includes: Ref. 2 and 3
1шт.
Used on planetary drive trenchers.
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
H939322
CHAIN ASSEMBLY - digging, anti-backflex, NSS, not available for service, order individual components, 10 pitches, Includes: Ref. 1 -3, FOR 6 FOOT DIGGING DEPTH BOOM
2шт.
1
102046A1
CHAIN (AG)
CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches, Includes: Ref. 2 and 3
1шт.
2
102501A1
PIN
- connector
1шт.
3
H297655
AXLE PIN
PIN - pin retaining, chain
1шт.
Выбрано товаров: 38
