(2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741

Запчасти Case 560 (2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

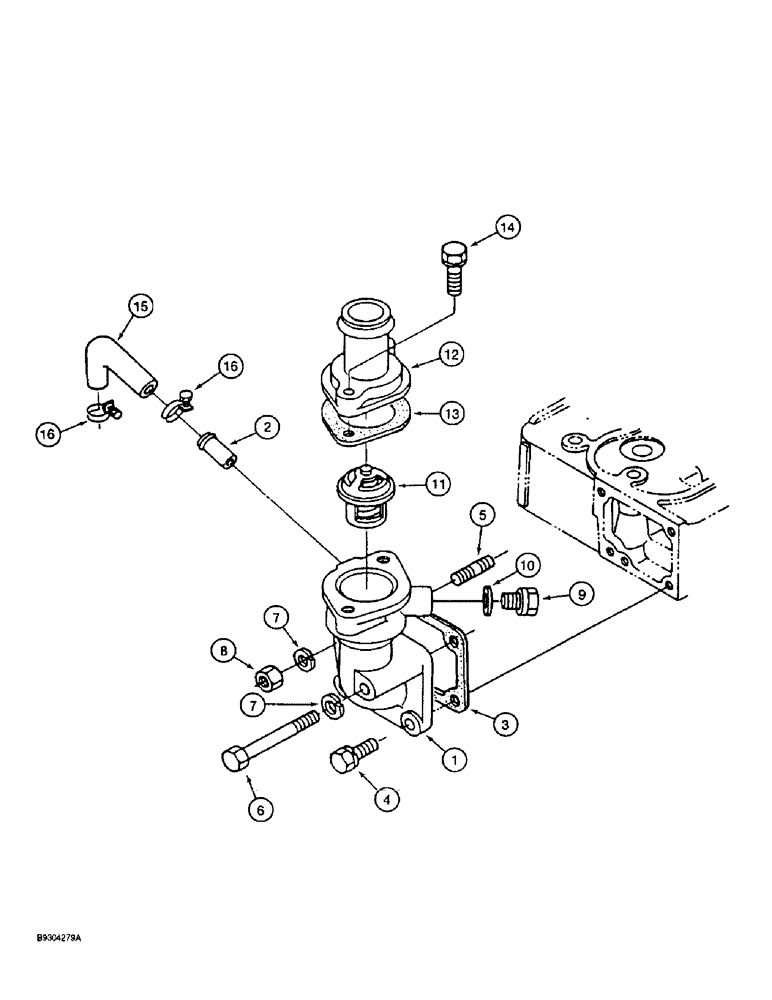

Схема запчастей Case 560 - (2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE
4
15
13
16
14
3
7
8
5
1
10
16
6
2
7
12
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127116A1

FLANGE

HOUSING - thermostat, Includes: Ref. 2

1шт.

2

127117A1

PIPE

TUBE - water return

1шт.

3

127119A1

GASKET

- thermostat housing

1шт.

4

1959456C1

BOLT

- hex, special

2шт.

5

1959265C1

STUD

- thermostat housing

1шт.

6

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

- hex, 8 - 1.25 x 70 mm

1шт.

7

1959162C1

LOCK WASHER

- lock

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

9

127126A1

PLUG

- thermostat housing

1шт.

10

127127A1

GASKET

- plug

1шт.

11

127128A1

THERMOSTAT

- water

1шт.

12

127129A1

COVER

- thermostat

1шт.

13

127130A1

GASKET

- thermostat cover

1шт.

14

1959494C1

BOLT

- hex washer head, special

2шт.

15

127122A1

PIPE

TUBE - water return

1шт.

16

127125A1

BRAKE BAND

CLAMP - tube

2шт.
