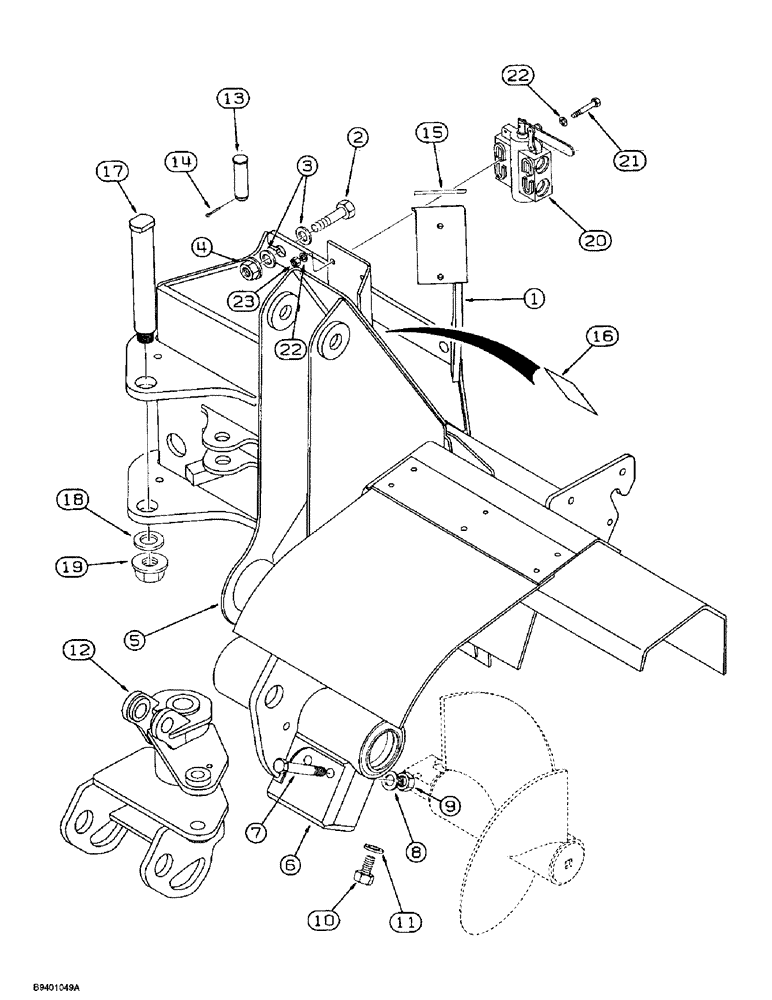

Запчасти Case 560 (9-062) - QUAD FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

125857A1

CHASSIS

FRAME - quad, used with direct drive trencher and P75 plow

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

3

H426817

WASHER

- flat, special, hardened

12шт.

4

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

5

117218A1

FRAME

- trencher, see Figure 9-58

1шт.

6

REF

INSTRUCTION

DRIVE - trencher, see Figure 9-58

1шт.

7

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch, grade 8

2шт.

8

H426817

WASHER

- flat, special, hardened

2шт.

9

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

10

426-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

- hex, 1 NC x 2 inch, grade 8

2шт.

11

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

12

120718A1

PIVOT

TOWER - plow swing, see Figure 9-118

1шт.

13

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch, hardened

1шт.

14

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

15

127447A1

DECAL

- plow control pattern, lift/swing, not shown, see Figure 9-142 for decals

1шт.

16

129690A1

DECAL

- quad select, trench/plow, not shown, see Figure 9-142 for decals

1шт.

17

120727A1

PIVOT PIN

PIN - pivot, plow

1шт.

18

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

- flat, 1-17/32 x 2-1/16 x 1/8 inch

2шт.

19

232-41120

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

1шт.

20

H672979

VALVE

ASSEMBLY - selector, trencher/plow, parts list Figure 8-170

1шт.

21

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

23

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.
