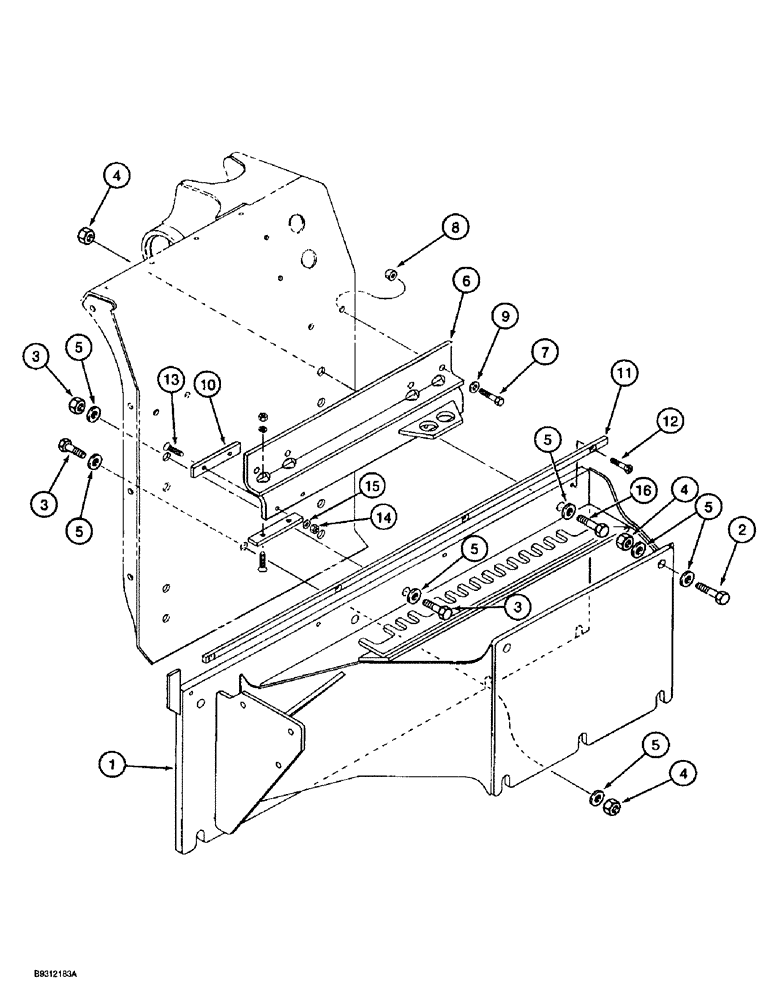

Запчасти Case 560 (9-060) - OFFSET TRENCHER FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

115186A1

CHASSIS

FRAME - mounting, offset trencher

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

3

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

3шт.

4

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

11шт.

5

H426817

WASHER

- flat, special, hardened

17шт.

6

115197A1

SLIDE

COVER - trencher frame

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

8

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

9

H274894

WASHER

- flat, special

8шт.

10

115201A1

BAR

- slider, short

4шт.

11

115202A1

BAR

- slider, long

1шт.

12

61-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket, 5/16 NC x 1 inch

4шт.

13

61-43120

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1 1/4"

BOLT - hex socket, 6/16 NC x 1-1/4 inch

8шт.

14

H426775

WASHER

- flat, special, hardened

8шт.

15

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.
