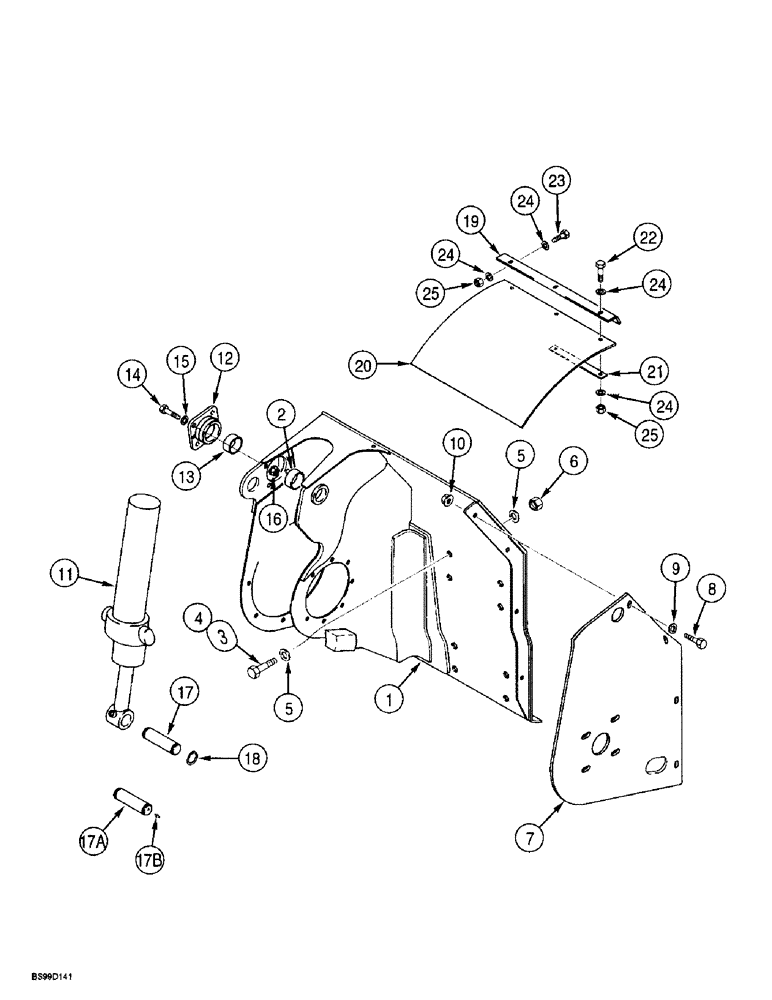

Запчасти Case 560 (9-058) - TRENCHER FRAME AND MOUNTING, PLANETARY DRIVE TRENCHER (09) - CHASSIS/ATTACHMENTS

1

117218A1

FRAME

- trencher, Includes: Ref. 2

1шт.

2

H436164

BUSHING

- cylinder pivot

1шт.

3

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

4шт.

4

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

5

H426817

WASHER

- flat, special, hardened

11шт.

6

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

7

117217A1

COVER ASSY

COVER - end, trencher frame

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

9

H274894

WASHER

- flat, special

4шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - trencher boom lift, see Figures 8-112 and 8-113A for correct cylinder

1шт.

123494A1

PISTON ASSY

PIVOT ASSEMBLY - cylinder, Includes: Ref. 12 and 13

1шт.

12

123495A1

PIVOT

- block

1шт.

13

H436164

BUSHING

- cylinder pivot

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

H274894

WASHER

- flat, special

4шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

17

106707A1

PIN

- mounting, boom lift cylinder, used with H672821 cylinder

1шт.

17a

221253A1

PIN

- mounting, boom lift cylinder, used with 221700A1cylinder

1шт.

17b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used with pin, Ref. 17A

1шт.

18

D25279

SNAP RING,M35, Int

RING - snap

2шт.

19

117207A1

BRACKET

- angle, dirt deflector

1шт.

20

117206A1

DEFLECTOR

- dirt

1шт.

21

117205A1

LARGE PLATE

PLATE - support, dirt deflector

1шт.

22

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

24

H426775

WASHER

- flat, special, hardened

6шт.

25

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.
