Запчасти Case 560 (9-054) - ATTACHMENT SPEED CONTROL (09) - CHASSIS/ATTACHMENTS

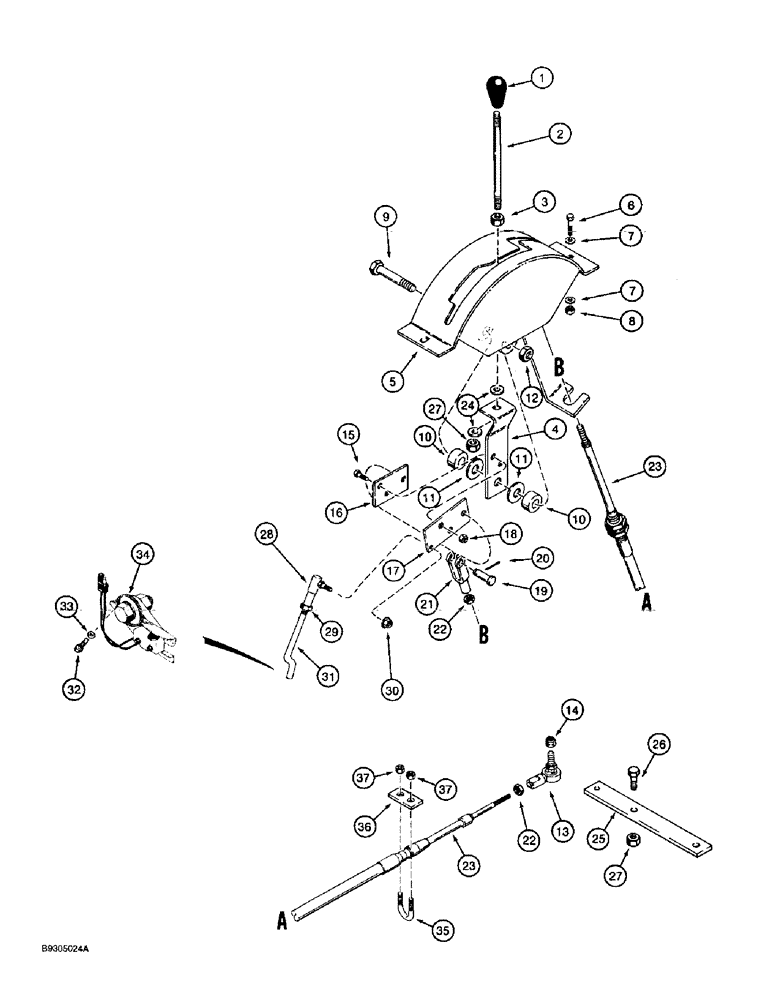

Схема запчастей Case 560 - (9-054) - ATTACHMENT SPEED CONTROL (09) - CHASSIS/ATTACHMENTS
29
37
12
36
6
20
4
2
27
18
19
32
33
30
13
9
35
23
22
17
10
14
16
28
15
7
22
27
7
23
11
31
3
10
24
11
21
8
25
26
37
34
5
1

Артикул

Название

Примечание

Количество

1

A14051

GRIP

KNOB - attachment speed control lever

1шт.

2

114524A1

ROD

- control

1шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

4

H434691

LEVER

- control, attachment speed

1шт.

5

H672244

CONTROL

HOUSING - control lever

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

7

H426775

WASHER

- flat, special, hardened

4шт.

8

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

H428284

SPACER

- lever

2шт.

11

H256305

WASHER

- flat, special

2шт.

12

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

13

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT - ball, female, 1/4 inch NF, cable end

1шт.

14

131-1245

LOCK NUT,1/4"-28, GC

NUT - hex, self-locking, 1/4 inch NF

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

16

H433515

PLATE

- cable mounting

1шт.

17

H435825

LARGE PLATE

PLATE - cable and ball joint mounting

1шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

19

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

1шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

21

A18709

CLEVIS

- cable end

2шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

23

102695A1

CABLE

-

1шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

25

H437593

LEVER

- control, tandem pump

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

28

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable end at pedal

1шт.

29

225-14210

NUT,#10-32

1шт.

30

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

31

H435816

ROD

- ball joint to switch actuator

1шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

33

H426775

WASHER

- flat, special, hardened

2шт.

34

H673443

SWITCH

ASSEMBLY - neutral start, parts list Figure 4-20

1шт.

35

H166421

HARDWARE

U-BOLT - 1/4 inch NC

1шт.

36

H373779

LARGE PLATE

SPACER - cable

1шт.

37

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

Выбрано товаров: 37
