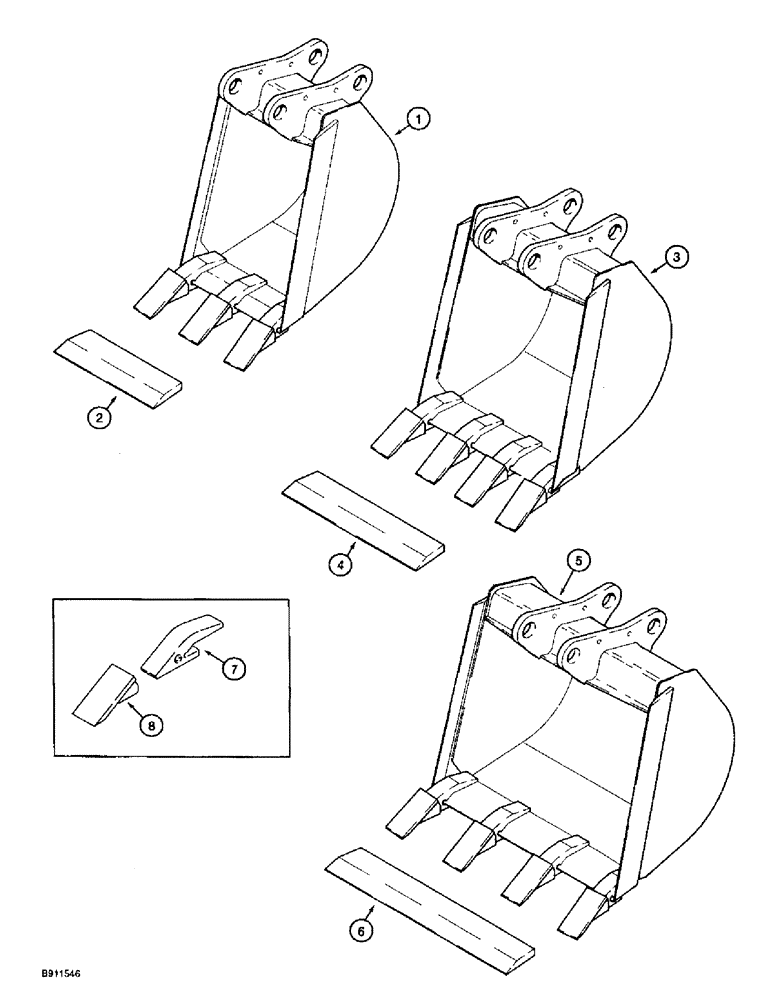

Запчасти Case 560 (9-050) - BACKHOE BUCKETS, D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

H674115

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 344 mm (13-1/2 inch) wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - 13-1/2 inch (344 mm) wide

1шт.

2

H438604

EDGE

- cutting, 344 mm (13-1/2 inch)) bucket

1шт.

H674116

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 458 mm (18 inch) wide, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET - 18 inch (458 mm) wide

1шт.

4

H438593

EDGE

- cutting, bucket, 458 mm (18 inch) wide

1шт.

H674117

BUCKET

ASSEMBLY - backhoe, order from Machinery Price List, 610 mm (24 inch) wide, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET - 24 inch (610 mm) wide

1шт.

6

H438543

EDGE

- cutting, bucket, 610 mm (24 inch) wide

1шт.

H672429

TOOTH

ASSEMBLY - backhoe bucket, Includes: Ref. 7 and 8

3-4шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D27748

TOOTH

POINT - bucket tooth, standard

1шт.
