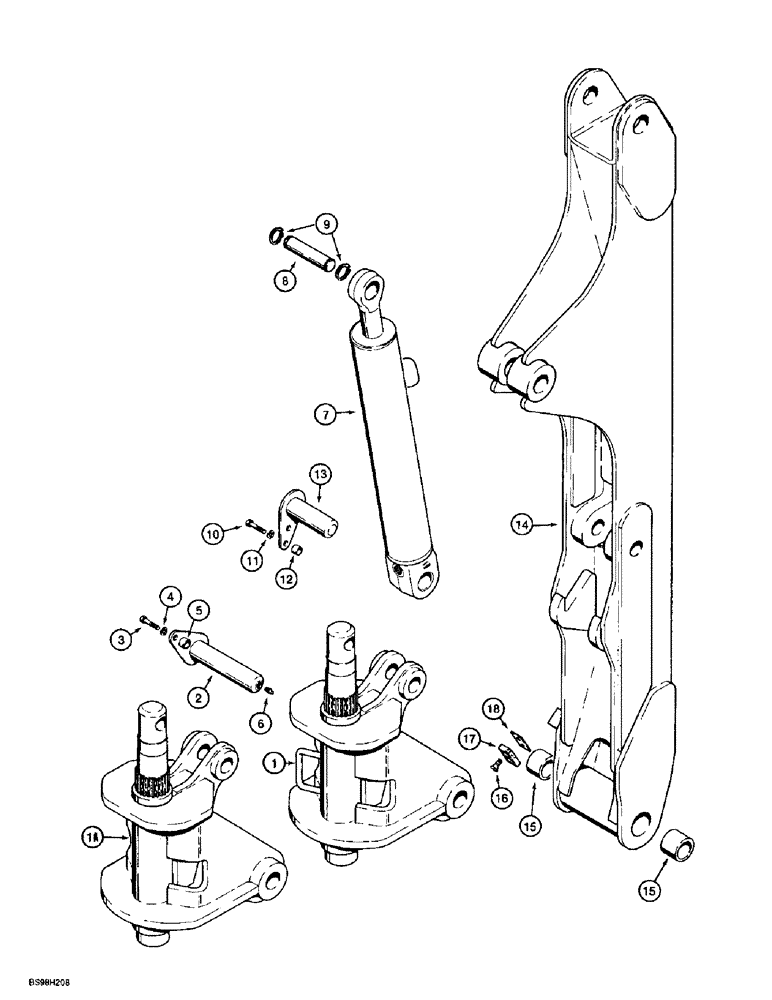

Запчасти Case 560 (9-042) - BACKHOE SWING TOWER AND BOOM, D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H674114

POST

TOWER - swing, backhoe, with hose retaining rod, prior to backhoe serial no. JAF0218189

1шт.

1a

259238A1

PIVOT ASSY.

TOWER - swing, backhoe, without hose retaining rod, backhoe serial no. JAF0218189 and after

1шт.

2

H674111

PIN

- boom pivot, boom to swing tower

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

D95553

SPACER

- boom pivot pin

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, see Figures 8-94 and 8-95A for correct cylinder

1шт.

8

H437348

PIN,38.15mm OD x 171mm L

- mounting, boom, Serial Range: cylinder-boom

1шт.

9

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

H438253

SPACER

- boom cylinder pin

1шт.

13

H674112

PIN

- boom cylinder to swing tower

1шт.

H674107

BOOM

ASSEMBLY - backhoe, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BOOM - backhoe

1шт.

15

H437317

BUSHING

- backhoe boom

2шт.

16

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket, 5/16 NC x 1 inch

2шт.

17

H439260

BAR

- boom stop

1шт.

18

H439261

BAR

SPACER - bar

3шт.
