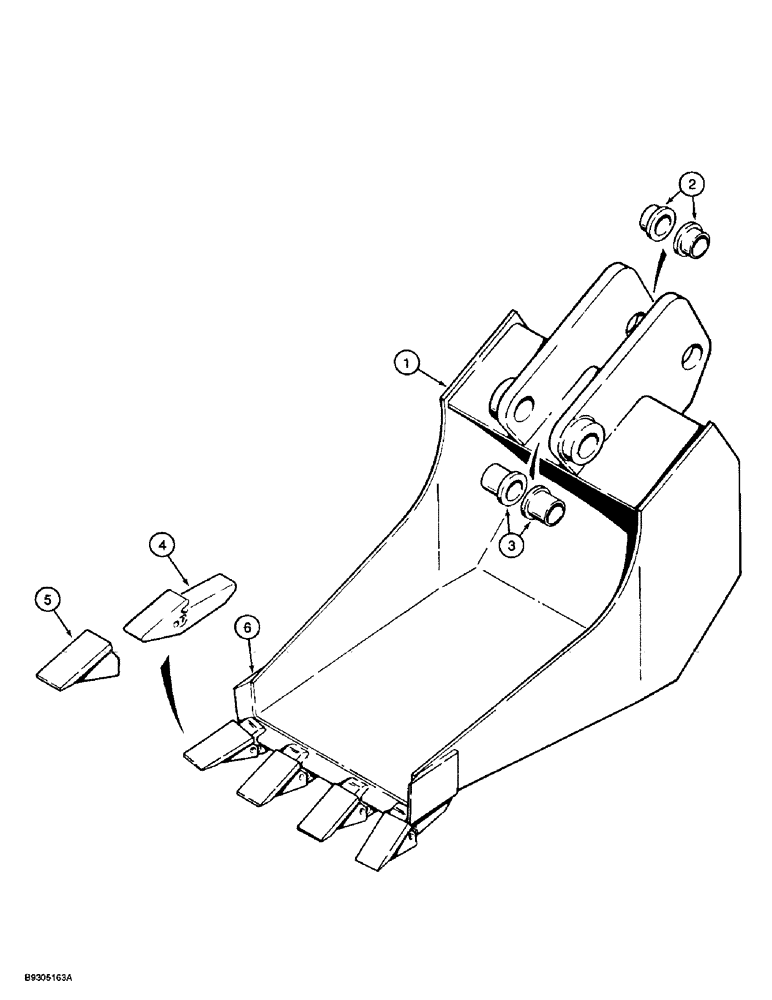

Запчасти Case 560 (9-034) - BACKHOE BUCKETS, BELLHOLE BUCKETS, D100 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H905109

BUCKET - bellhole, order from Machinery Price List, 305 mm (12 inch), Includes: Ref. 2 - 6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61424

HALF BLADE

EDGE - cutting, 305 mm (12 inch) bucket

1шт.

1

H905117

BUCKET - bellhole, order from Machinery Price List, 457 mm (18 inch), Includes: Ref. 2 - 6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61432

HALF BLADE

EDGE - cutting, 457 mm (18 inch) bucket

1шт.
