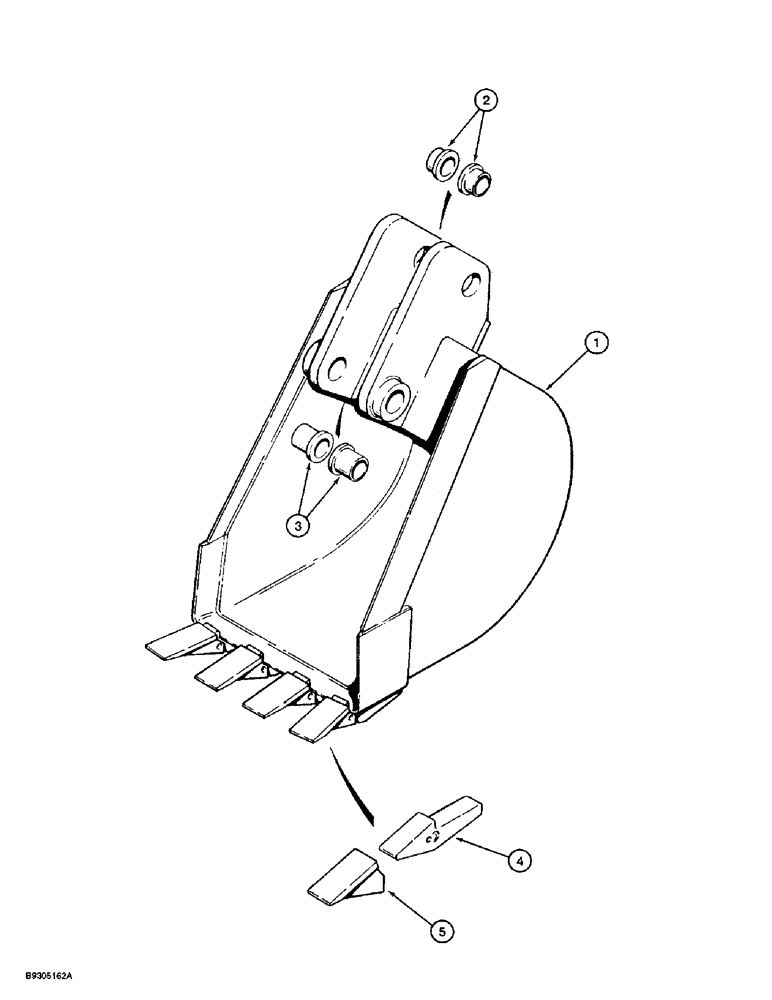

Запчасти Case 560 (9-032) - BACKHOE BUCKETS, STANDARD BUCKETS, D100 BACKHOE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H905158
BUCKET
- standard, order from Machinery Price List, 305 mm (12 inch), Includes: Ref. 2 - 5
1шт.
2
H50823
BUSHING
- cylinder pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- bucket pivot
2шт.
4
H36657
TOOTH
SHANK - tooth
4шт.
5
T41166
TOOTH
POINT - tooth
4шт.
1
H905166
BUCKET
- standard, order from Machinery Price List, 406 mm (16 inch), Includes: Ref. 2 - 5
1шт.
2
H50823
BUSHING
- cylinder pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- bucket pivot
2шт.
4
H36657
TOOTH
SHANK - tooth
4шт.
5
T41166
TOOTH
POINT - tooth
4шт.
1
H905174
BUCKET - standard, order from Machinery Price List, 508 mm (20 inch), Includes: Ref. 2 - 5
1шт.
2
H50823
BUSHING
- cylinder pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- bucket pivot
2шт.
4
H36657
TOOTH
SHANK - tooth
4шт.
5
T41166
TOOTH
POINT - tooth
4шт.
1
H905182
BUCKET - standard, order from Machinery Price List, 610 mm (24 inch), Includes: Ref. 2 - 5
1шт.
2
H50823
BUSHING
- cylinder pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- bucket pivot
2шт.
4
H36657
TOOTH
SHANK - tooth
4шт.
5
T41166
TOOTH
POINT - tooth
4шт.
Выбрано товаров: 20
