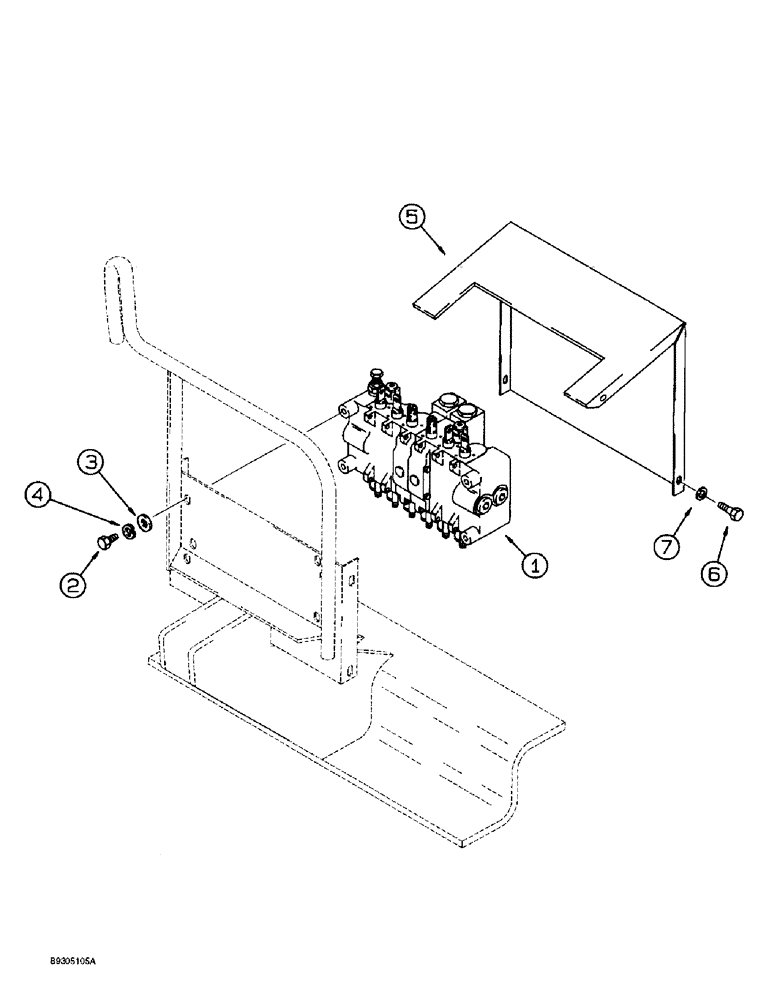

Запчасти Case 560 (9-020) - BACKHOE CONTROL TOWER, D100 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H674300

VALVE

ASSEMBLY - control, backhoe, parts list Figures, Serial Range: 8-56-8-62

1шт.

2

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3

H426775

WASHER

- flat, special, hardened

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

117523A1

COVER

CONSOLE - valve mounting

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

7

H426775

WASHER

- flat, special, hardened

4шт.
