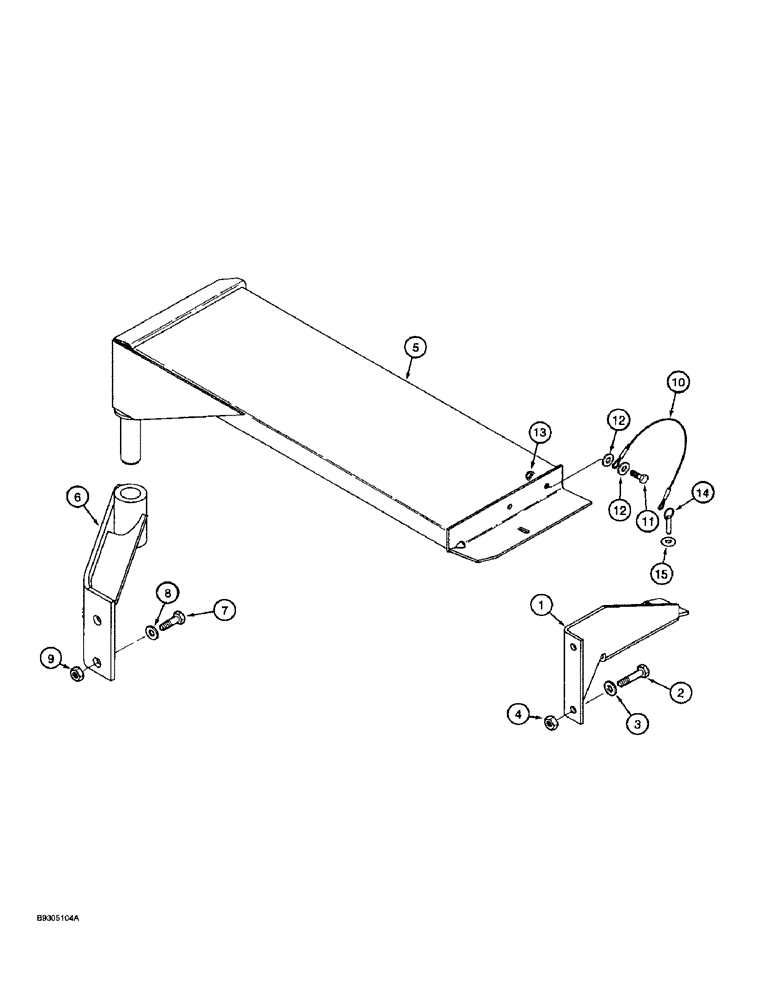

Запчасти Case 560 (9-014) - BACKHOE WALKWAY, D100 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

116559A1

ANGLE

- walkway support

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

H274894

WASHER

- flat, special

2шт.

4

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

5

116560A1

WALKWAY

- backhoe access

1шт.

6

102362A1

PIVOT

- walkway mounting

1шт.

7

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

8

H426817

WASHER

- flat, special, hardened

2шт.

9

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

10

L78786

CABLE RETAINER

CABLE - retainer

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

13

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

14

D94535

PIN,9.52mm OD

- locking

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
