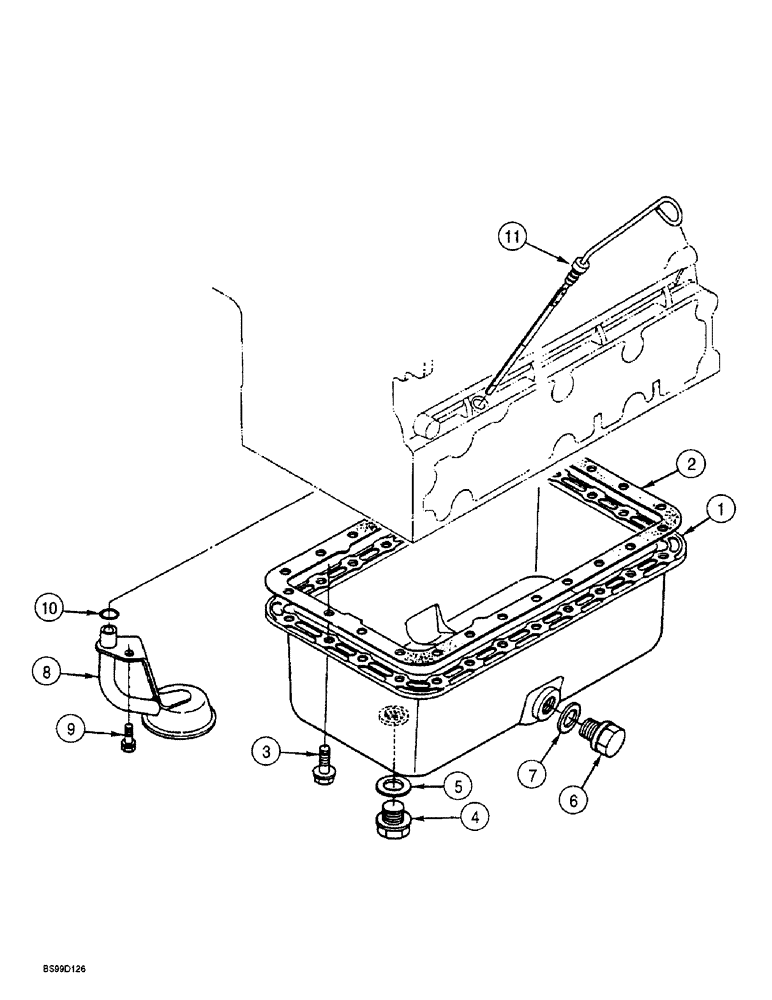

Запчасти Case 560 (2-09A) - OIL PAN, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

1

368557A1

PAN

- oil

1шт.

2

125194A1

OIL PAN GASKET SET

- oil pan

1шт.

3

125196A1

FLANGE BOLT

- flange, special

24шт.

4

1959149C1

PLUG

- drain

2шт.

5

1959150C1

SEALING WASHER

- flat, 12 x 16 x 1.5 mm

2шт.

6

125197A1

PLUG

- drain

1шт.

7

125198A1

GASKET

- drain plug

1шт.

8

125199A1

FILTER, ENGINE OIL

FILTER - screen, oil

1шт.

9

200290A1

BOLT

BOLT - special

1шт.

10

125200A1

O-RING

- oil filter

1шт.

11

125201A1

DIPSTICK

- engine oil

1шт.

12

370078A1

PLUG

- oil, not shown

1шт.
