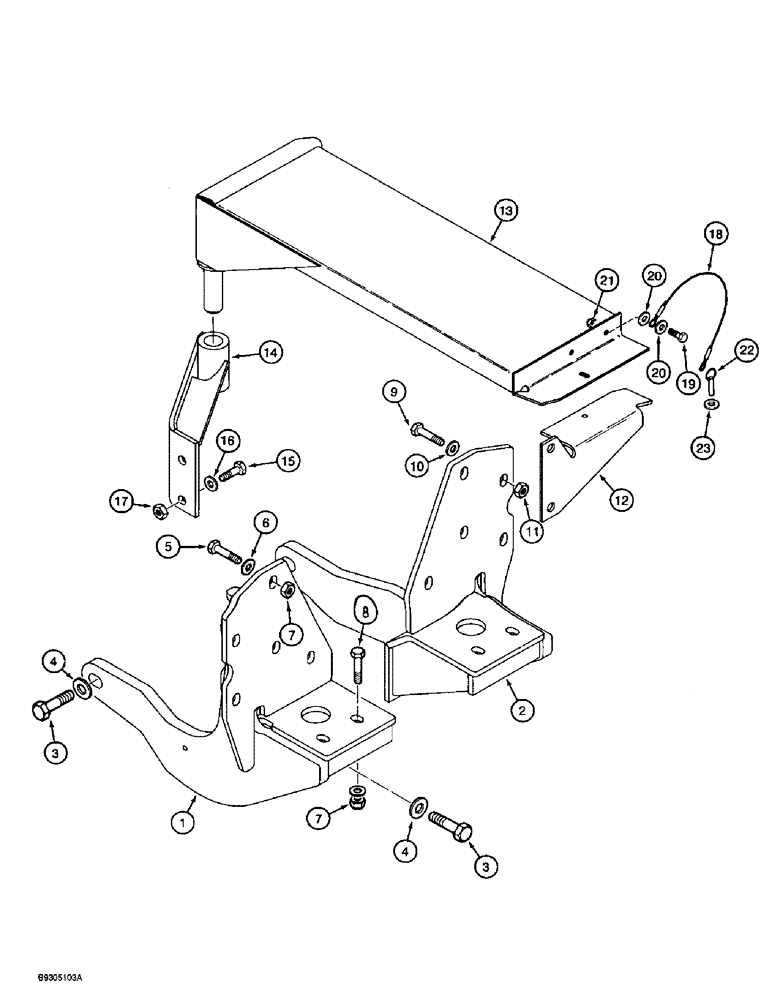

Запчасти Case 560 (9-012) - BACKHOE TO CHASSIS MOUNTING BRACKETS AND WALKWAY, D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

110522A1

BRACKET

- mounting, backhoe to chassis mounting, right-hand

1шт.

2

116278A1

BRACKET

- mounting, backhoe to chassis mounting, left-hand

1шт.

3

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

4

D43536

WASHER

- flat, special, 1-1/4 inch

4шт.

5

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

8шт.

6

H426817

WASHER

- flat, special, hardened

12шт.

7

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

12шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

9

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

10

H426817

WASHER

- flat, special, hardened

2шт.

11

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

12

116558A1

ANGLE

- walkway support

1шт.

13

116560A1

WALKWAY

- backhoe access

1шт.

14

102362A1

PIVOT

- walkway mounting

1шт.

15

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

16

H426817

WASHER

- flat, special, hardened

2шт.

17

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

18

L78786

CABLE RETAINER

CABLE - retainer

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

21

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

22

D94535

PIN,9.52mm OD

- locking

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
