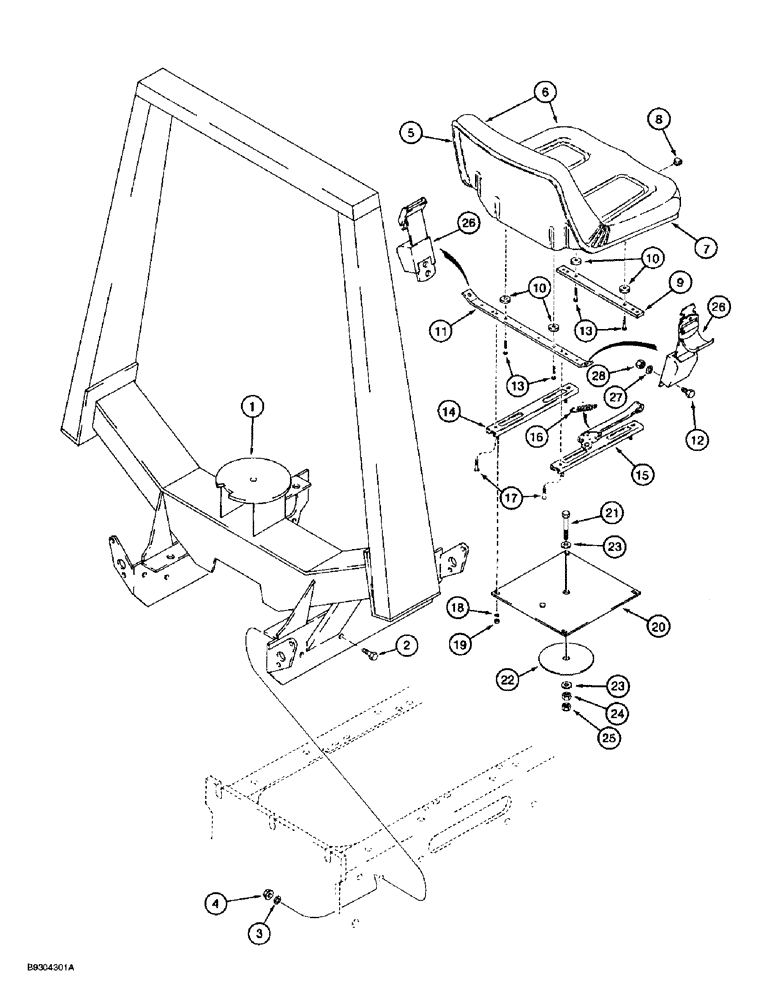

Запчасти Case 560 (9-008) - ROLL OVER PROTECTIVE STRUCTURE, OPERATORS SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

103953A1

PLATFORM

- ROPS

1шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

14шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

10шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

14шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

H672324

SEAT

ASSEMBLY - operators, brown, Includes: Ref. 5 - 17

1шт.

179331A1

SEAT

ASSEMBLY - operators, with hole for interlock switch, gray, Includes: Ref. 5 - 17

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL - seat pan

1шт.

6

NSS

NOT SOLD SEPARAT

CUSHION - seat, H672324 seat, brown vinyl

1шт.

6a

220713A1

CUSHION

- seat, 179331A1 seat, gray vinyl

1шт.

7

NSS

NOT SOLD SEPARAT

TRIM - seat

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP - seat trim

1шт.

9

N13978

BAR

- seat belt

1шт.

10

N8543

SPACER

- nylon

4шт.

11

103267A1

BAR

BRACKET - seat belt

1шт.

12

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

14

N13979

ADJUSTER

SLIDE - left-hand, without handle

1шт.

N13980

ADJUSTER

SLIDE - right-hand, with handle, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE - right-hand

1шт.

16

N8544

SPRING

- return, handle

1шт.

17

187-1157

SELF-TAP SCREW,Cross Pan Hd, 5/16"-18 x 5/8"

SCREW - self-tapping, pan head Phillips, 5/16 NC x 5/8 inch

4шт.

18

H426775

WASHER

- flat, special, hardened

4шт.

19

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

20

114965A2

PLATE

- seat mounting

1шт.

21

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

22

H438150

WASHER

- special, seat pivot

1шт.

23

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch

2шт.

24

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

25

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

26

H651646

SAFETY BELT ,45.70 mm W

Retractable 45.70 mm W

1шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

27

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

2шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.

28

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

2шт.

Components of 185341A1 (brown) and 189614A1 (gray) ROPS field kits. Also includes form No. 7-49220 installation instructions. Order from Machinery Price List.

1шт.
