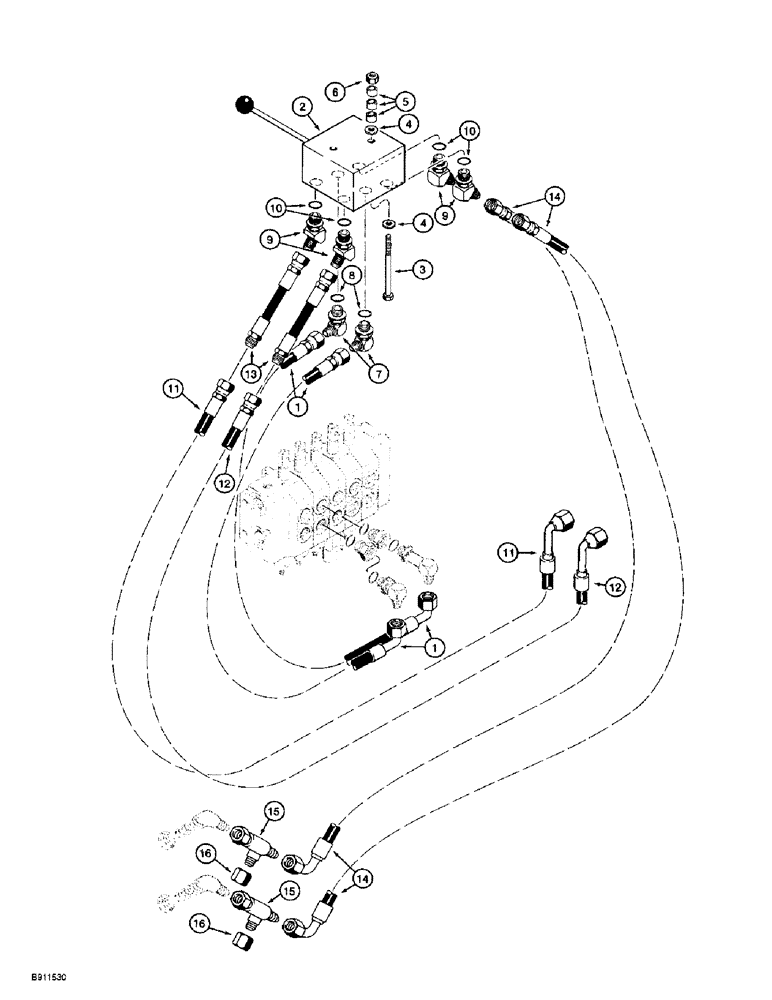

Запчасти Case 560 (8-166) - SELECTOR VALVE HYDRAULIC CIRCUIT, FOR QUAD/REEL CARRIER (08) - HYDRAULICS

1

H438001

HOSE ASSY.

HOSE - 532 mm (21 inch) long, attachment control valve attachment lift section to selector valve

2шт.

2

H672689

VALVE

ASSEMBLY - selector, reel carrier/trencher lift, parts list Figure 8-168

1шт.

3

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

4

H426775

WASHER

- flat, special, hardened

4шт.

5

D38524

SPACER

- between selector valve and console

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 8

2шт.

9

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 10

4шт.

11

H438488

HOSE ASSY.

HOSE - 2651 mm (104-3/8 inch) long, front bulkhead plate to hose at rear inner port of selector valve

1шт.

12

H438487

HOSE ASSY.

HOSE - 2668 mm (105 inch) long, front bulkhead plate to hose at rear outer port of selector valve

1шт.

13

102179A1

HOSE

- 165 mm (6-1/2 inch) long, front bulkhead hoses to selector valve, rear ports

2шт.

14

102180A1

HOSE

- 1040 mm (41 inch) long, right-hand rear console bulkhead fittings to selector valve, front ports

2шт.

15

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

16

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch, at tee branch

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
