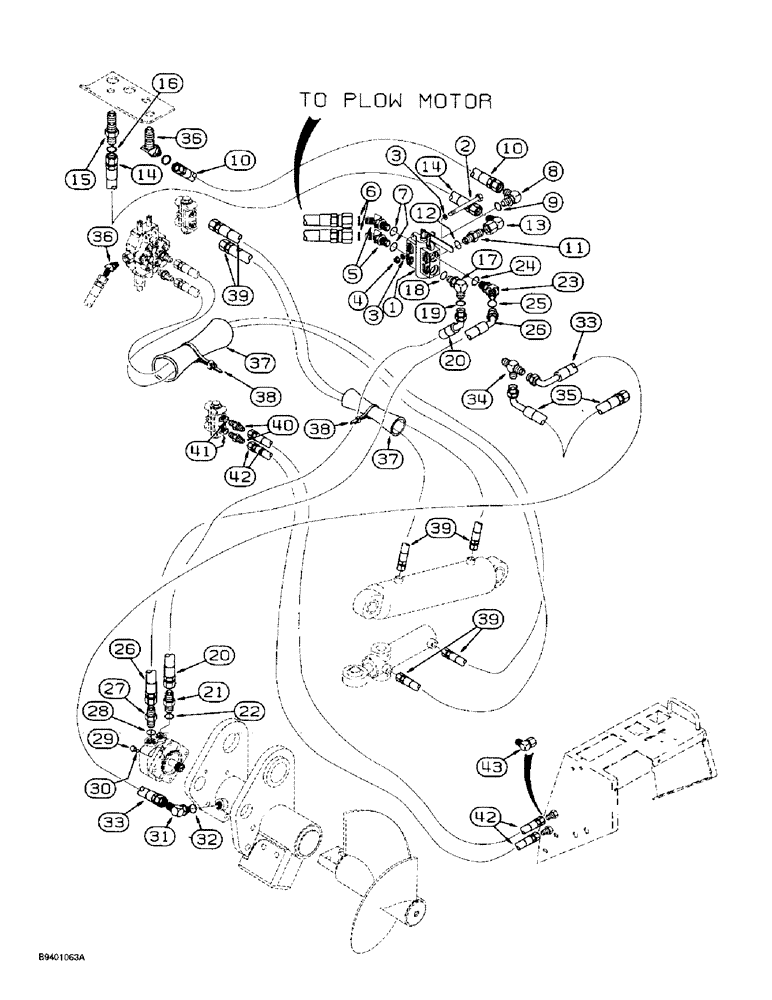

Запчасти Case 560 (8-164) - QUAD HYD. CIRCUIT, UNIQUE-TO-QUAD PARTS, SEE TRENCHER OR PLOW HYD. CIRCUIT PAGES FOR COMMON PARTS (08) - HYDRAULICS

1

H672979

VALVE

ASSEMBLY - selector, trencher/plow, parts list Figure 8-170

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

5

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

- 45 degree, 1-3/16-12 face x 1-1/16-12 inch adj O-ring, Includes: Ref. 6 and 7

2шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

129589A1

HOSE

- 1450 mm (57 inch) long, low loop, selector valve "A" port to rear bulkhead plate

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

14

129590A1

HOSE

- 1485 mm (58-1/2 inch) long, high loop, selector valve "B" port to rear bulkhead plate

1шт.

15

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face, Includes: Ref. 16

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 18 and 19

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

20

127253A2

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, high loop, selector valve to trencher drive motor

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

- 45 degree, 1-3/16-12 face x 1-1/16-12 inch adj O-ring, Includes: Ref. 24 and 25

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

26

127252A2

HOSE ASSY.

HOSE - 1175 mm (46-1/4 inch) long, low loop, selector valve "D" port to trencher drive motor

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 30 Hex Hd, 9/16"-18 ORB

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 31

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

128847A1

HOSE

- 1085 mm (42-3/4 inch) long, trencher motor case drain

1шт.

34

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

1шт.

35

129591A1

HOSE

- 1200 mm (47-1/4 inch) long, case drain, tee to rear bulkhead plate

1шт.

36

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

2шт.

37

128775A1

LOOM

SLEEVE - nylon, lift and swing cylinder hoses

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

39

129592A1

HOSE

- 355 mm (14 inch) long, quad extension, Includes: Ref. 40

4шт.

40

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

42

109605A1

HOSE

- 600 mm (23-5/8 inch) long, right-hand rear console to trencher boom lockout valve

2шт.

43

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
