(8-144) - PLOW CONTROL VALVE ASSEMBLY - H674318, END PLATE MOUNTING, P85 PLOW

Запчасти Case 560 (8-144) - PLOW CONTROL VALVE ASSEMBLY - H674318, END PLATE MOUNTING, P85 PLOW (08) - HYDRAULICS

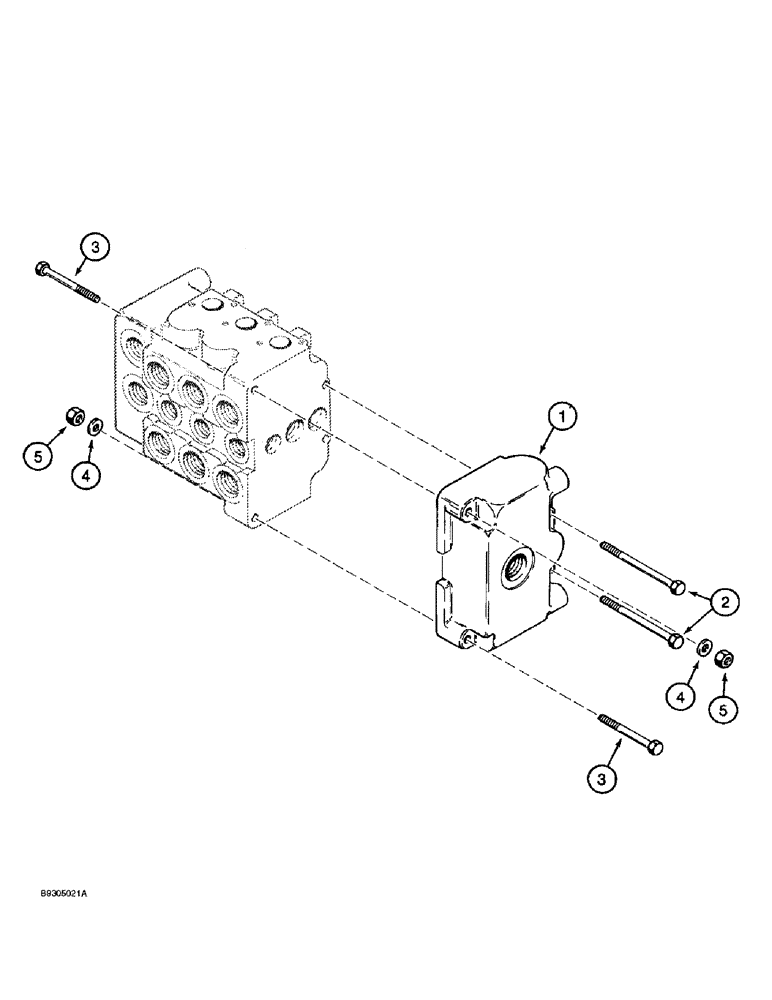

Схема запчастей Case 560 - (8-144) - PLOW CONTROL VALVE ASSEMBLY - H674318, END PLATE MOUNTING, P85 PLOW (08) - HYDRAULICS
3
1
4
3
5
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674318

VALVE

ASSEMBLY - control, plow, parts list Figures 8-138 - 8-144, Includes: Ref. 1 - 5

1шт.

1

101488A1

LARGE PLATE

PLATE - end

1шт.

2

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch

2шт.

3

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

5

425-114

NUT,1/4"-28, G5

4шт.
