(2-07A) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER

Запчасти Case 560 (2-07A) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

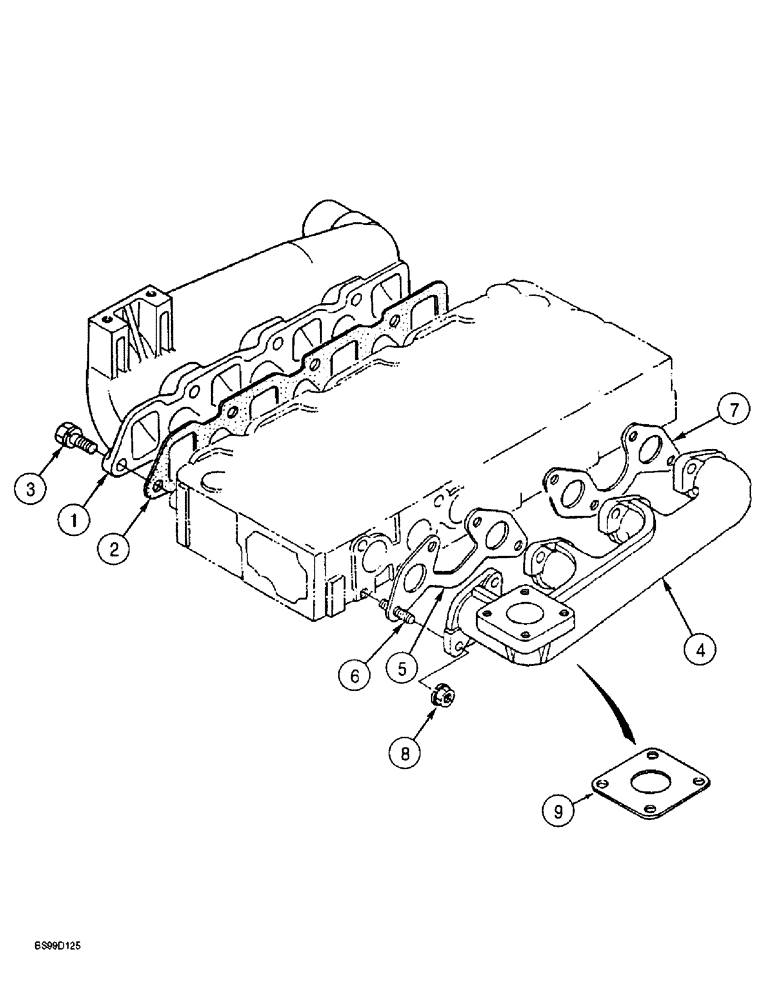

Схема запчастей Case 560 - (2-07A) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE
1
7
3
2
9
5
6
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126412A1

TUBE ASSY.

MANIFOLD - intake

1шт.

2

200128A1

MANIFOLD GASKET

- intake manifold

1шт.

3

1959456C1

BOLT

- hex, special

7шт.

4

126414A1

SUCTION PIPE

MANIFOLD - exhaust

1шт.

5

200111A1

MANIFOLD GASKET

- exhaust manifold

1шт.

6

1959457C1

STUD

- exhaust manifold

8шт.

7

200118A1

MANIFOLD GASKET

- exhaust manifold

1шт.

8

368661A1

NUT

- hex, special

8шт.

9

126500A2

GASKET

- exhaust, Serial Range: manifold-muffler

1шт.
