Запчасти Case 560 (8-130) - PLOW MOTOR ASSEMBLY - 133530A1, P75 PLOW (08) - HYDRAULICS

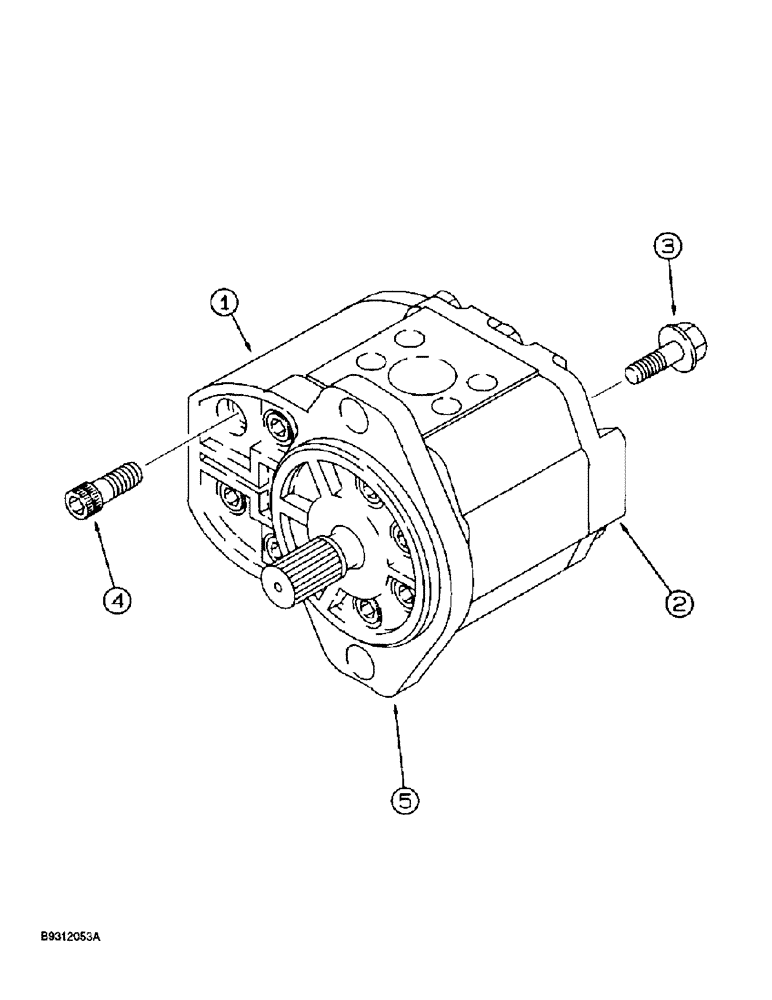

Схема запчастей Case 560 - (8-130) - PLOW MOTOR ASSEMBLY - 133530A1, P75 PLOW (08) - HYDRAULICS
1
5
3
4
2

Артикул

Название

Примечание

Количество

133530A1

MOTOR

ASSEMBLY - plow, see Figure 9-120 for motor mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - plow motor

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - plow motor

1шт.

3

141149A1

SCREW

BOLT - hex, special, cover retaining

8шт.

4

141150A1

FLANGE BOLT

SCREW - hex socket, special, mounting flange retaining

8шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - mounting, plow motor

1шт.

141151A1

SEAL KIT

KIT - seal replacement, includes three (3) O-rings, one (1) retaining ring, one (1) sealing ring, and one (1) 139070A1 shaft seal

1шт.

Выбрано товаров: 7
