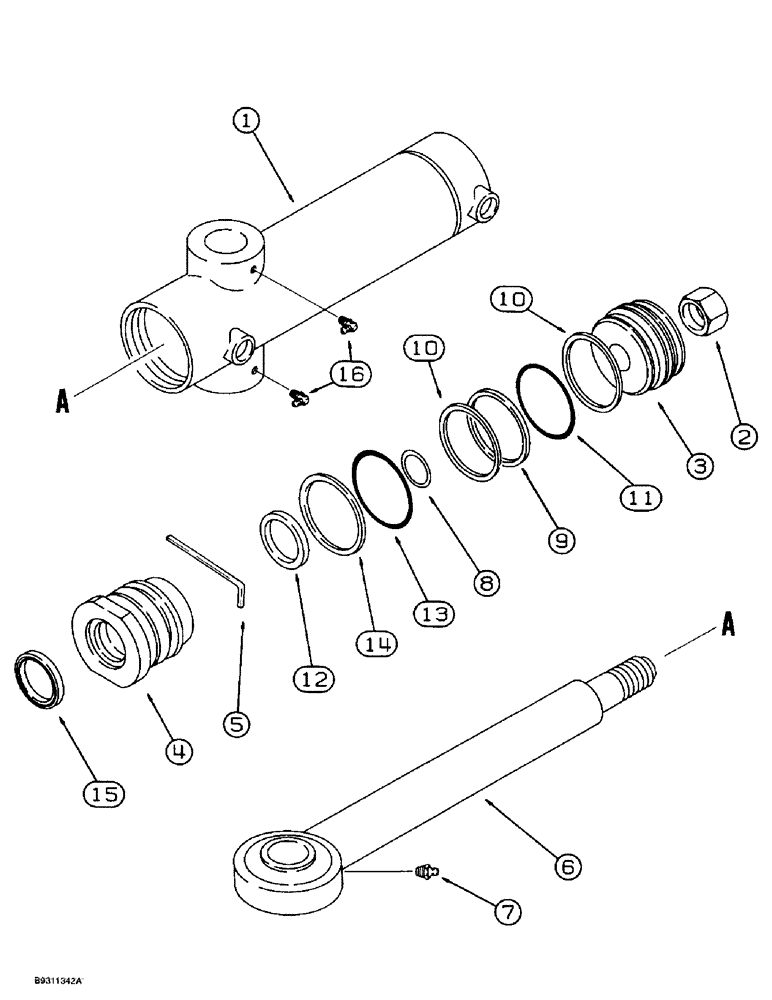

Запчасти Case 560 (8-128) - PLOW SWING CYLINDER ASSEMBLY - 135825A1, P75 PLOW (08) - HYDRAULICS

135825A1

CYLINDER,Double Acting, 25.4mm Rod, 142.7mm Stroke

ASSEMBLY - 51 (2) ID x 143 mm (5-5/8 inch) stroke, plow swing, see Figure 9-118 for mounting hardware, Includes: Ref. 1 - 16

2шт.

1

140226A1

TUBE

- cylinder

1шт.

2

231-41310

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

3

110501A1

JACK PISTON

PISTON - cylinder

1шт.

4

108641C1

GLAND

- cylinder

1шт.

5

461180R1

RETAINER

RING - retaining

1шт.

6

140227A1

ROD

- piston

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

1шт.

110510A1

SEAL KIT

KIT - seal replacement, Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod, small

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

13

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Gland -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

14

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING - backup, gland O-ring

1шт.

15

532773R1

WIPER SEAL

WIPER - piston rod

1шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.
