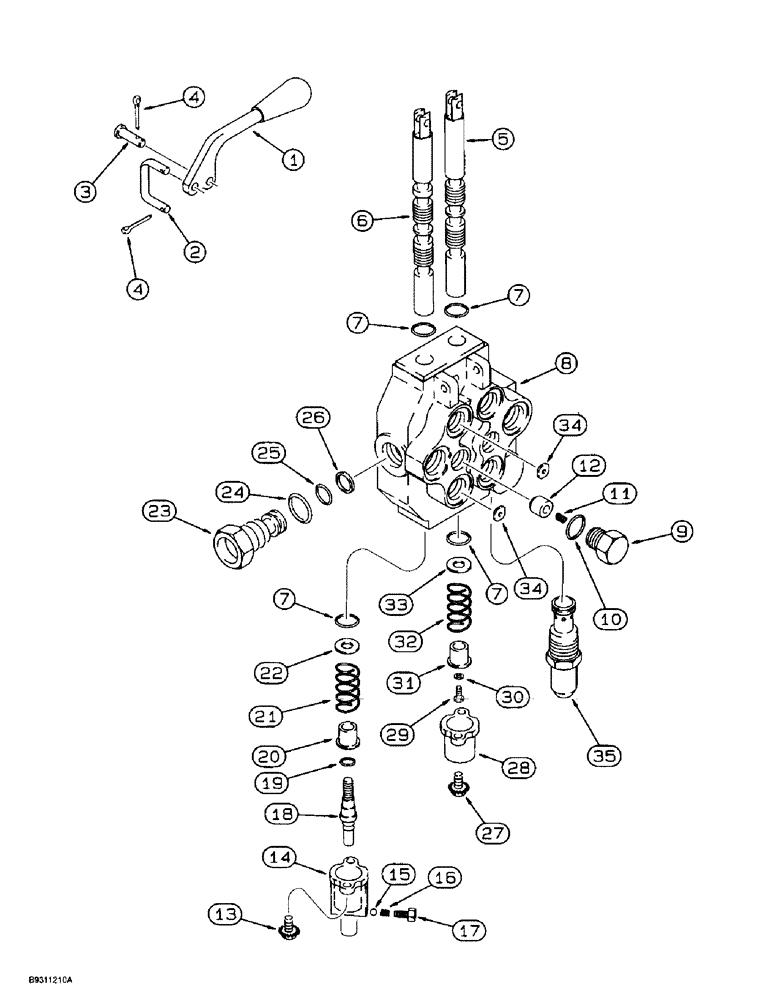

Запчасти Case 560 (8-124) - PLOW CONTROL VALVE ASSEMBLY - 127471A1, P75 PLOW (08) - HYDRAULICS

127471A1

VALVE, CHECK

VALVE ASSEMBLY - control, plow, Includes: Ref. 1 - 35

1шт.

1

138306A1

HANDLE

- control, plow swing and lift

2шт.

2

H438042

ARM

LINK - C-type, control, Serial Range: handle-spool

2шт.

3

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

4

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

6шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - plow control valve, lift section

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - plow control valve, swing section

1шт.

7

H438030

O-RING

- spool

4шт.

8

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

H673572

KIT

- load check, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - load check, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

138313A1

DETENT

KIT - detent float, Includes: Ref. 13 - 22

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - includes lock washer, detent float

2шт.

14

N9540

COVER

HOUSING - detent

1шт.

15

NSS

NOT SOLD SEPARAT

BALL - detent cap

2шт.

16

N9506

COIL SPRING

SPRING - detent

2шт.

17

D86560

SCREW

PLUG - detent

2шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - detent spool

1шт.

20

D86559

SEAT

- spring, lift spool

1шт.

21

D86558

SPRING

- return

1шт.

22

D86557

WASHER

- lift spool

1шт.

H436154

FITTING,7/8" - 14

ADAPTER - power beyond, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

A52424

BACK-UP RING

RING - backup, small O-ring

1шт.

H674816

KIT

- centering spring, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - includes lock washer

2шт.

28

N9528

CAP

- bucket spool end

1шт.

29

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

BOLT - hex socket, No. 10 NF x 1/2 inch

1шт.

30

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

31

N9529

SEAT

- spring, spool

1шт.

32

N9539

TENSION SPRING

SPRING - centering, spool

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - spring seat, spool

1шт.

34

141141A1

LARGE PLATE

PLATE - orifice

2шт.

35

138303A1

VALVE

- relief, main

1шт.
