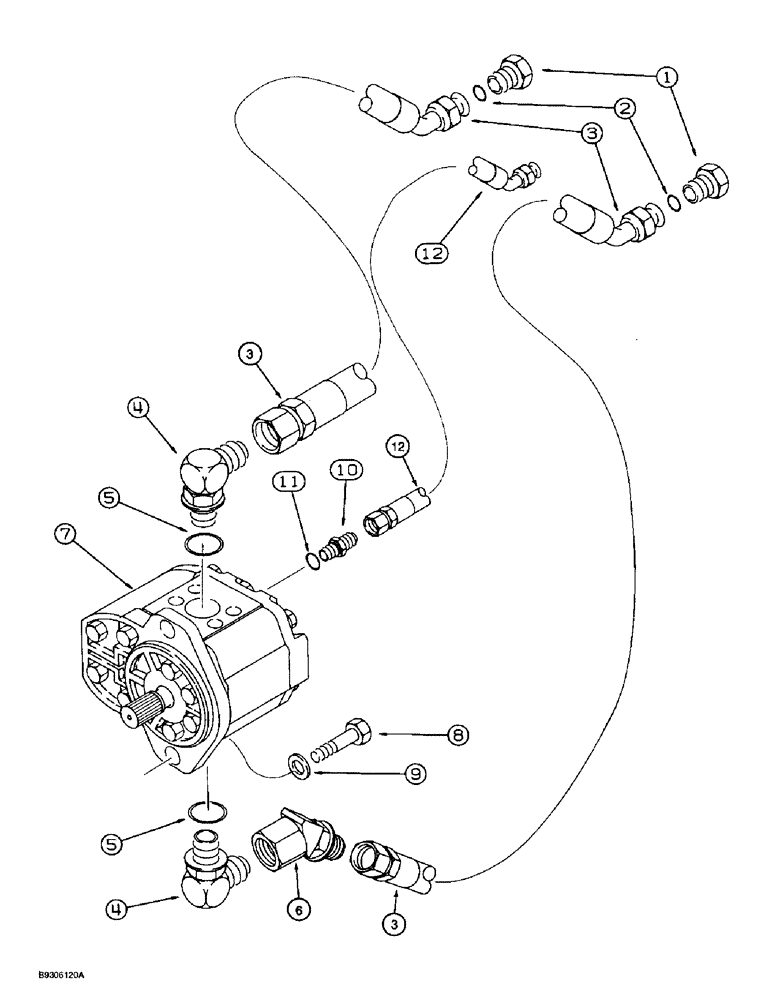

Запчасти Case 560 (8-122) - PLOW HYDRAULIC CIRCUIT, PLOW MOTOR SUPPLY AND RETURN LINES, FROM REAR BULKHEAD PLATE, P75 PLOW (08) - HYDRAULICS

1

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face, Includes: Ref. 2

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

140217A1

HOSE ASSY.

HOSE - 1250 mm (49-1/4 inch) long, plow motor

2шт.

4

218-5601

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-1/16-12 flare x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 5

2шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.

7

133530A1

MOTOR

ASSEMBLY - plow, parts list Figure 8-130

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

H274894

WASHER

- flat, special

2шт.

10

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss, Includes: Ref. 11

1шт.

12

128847A1

HOSE

- 1085 mm (42-3/4 inch) long, plow motor case drain

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
