(2-06) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741

Запчасти Case 560 (2-06) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

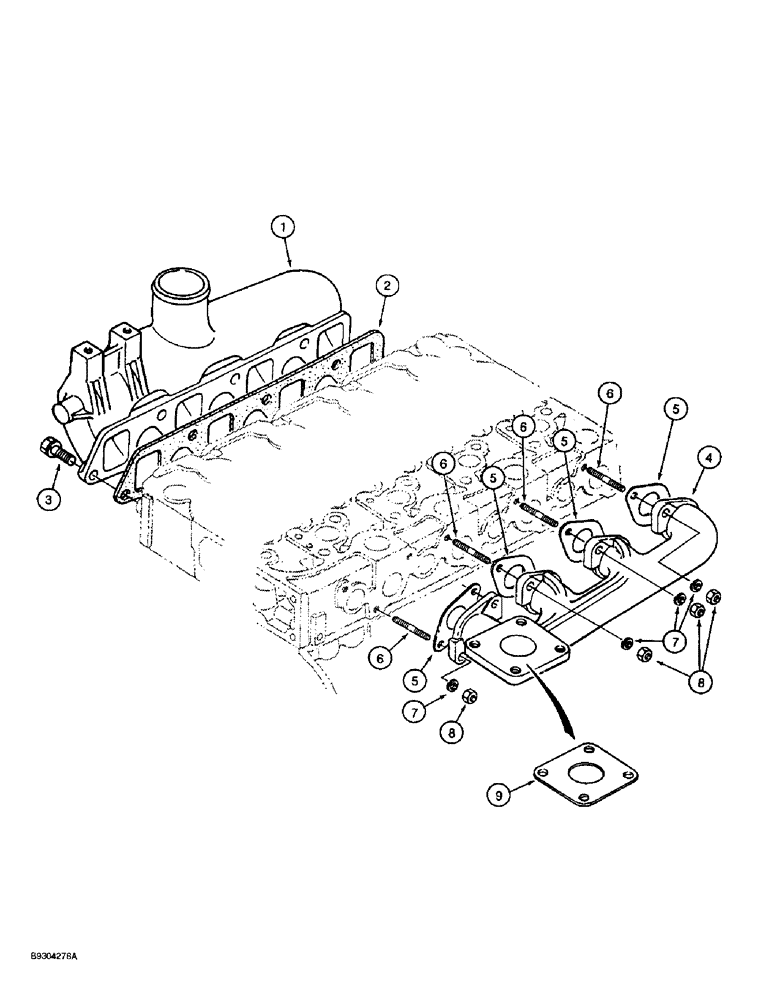

Схема запчастей Case 560 - (2-06) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE
1
7
6
5
5
6
9
8
2
5
4
8
6
7
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126412A1

TUBE ASSY.

MANIFOLD - intake

1шт.

2

126413A1

MANIFOLD GASKET

- intake manifold

1шт.

3

1959456C1

BOLT

- hex, special

7шт.

4

126414A1

SUCTION PIPE

MANIFOLD - exhaust

1шт.

5

126415A1

MANIFOLD GASKET

- exhaust manifold

4шт.

6

1959457C1

STUD

- exhaust manifold

8шт.

7

1959162C1

LOCK WASHER

- lock

8шт.

8

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

9

126500A2

GASKET

- exhaust, Serial Range: manifold-muffler

1шт.
