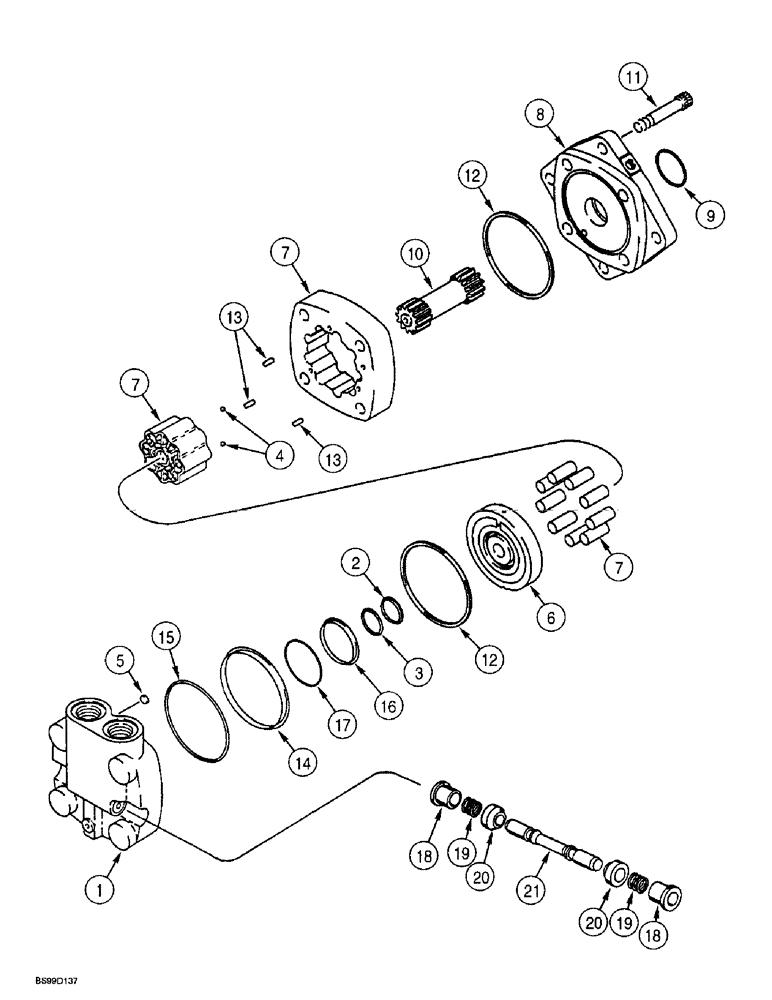

Запчасти Case 560 (8-114) - TRENCHER DRIVE MOTOR ASSEMBLY - 117981A1, DIRECT DRIVE TRENCHER (08) - HYDRAULICS

117981A1

MOTOR

ASSEMBLY - trencher drive, direct drive trencher, Includes: Ref. 1 - 21

1шт.

1

140781A1

CAP

- end

1шт.

2

NSS

NOT SOLD SEPARAT

RING - backup, inner O-ring

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - inner

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

4

140784A1

BALL

- check

2шт.

5

140785A1

DISC

- valve

1шт.

6

140786A1

LARGE PLATE

PLATE - valve

1шт.

7

140787A1

GEAR-SET

SET - gear

1шт.

8

140788A1

FLANGE

- mounting

1шт.

9

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

10

140789A1

SHAFT

- drive

1шт.

11

62-36256

HEX SOC SCREW,5/8"-18 x 3 1/2"

BOLT - hex socket, 5/8 NF x 3-1/2 inch

4шт.

12

NSS

NOT SOLD SEPARAT

SEAL - quad ring

2шт.

Part of Seal Kit, P/N 142645A1

1шт.

13

37-1410

DOWEL,1/4" x 5/8"

PIN - dowel, 3/8 x 3/4 inch, hardened

3шт.

14

NSS

NOT SOLD SEPARAT

RING - back-up, outer O-ring

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

15

238-6154

O-RING,0.103" Thk x 3.747" ID, -154, Cl 6, 90 Duro

- 3-3/4 ID x 3/32 inch wide, outer

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, intermediate O-ring

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - intermediate

1шт.

Part of Seal Kit, P/N 142645A1

1шт.

18

251509A1

RING

BUSHING - spring

2шт.

19

251506A1

SPRING

- poppet

2шт.

20

251511A1

VALVE POPPET

POPPET - piston

2шт.

21

251513A1

PISTON

- valve

1шт.

142645A1

SEAL KIT

KIT - seal, Includes: Ref. 2, 3, 9, 12, 14, 15, 16 and 17

1шт.
