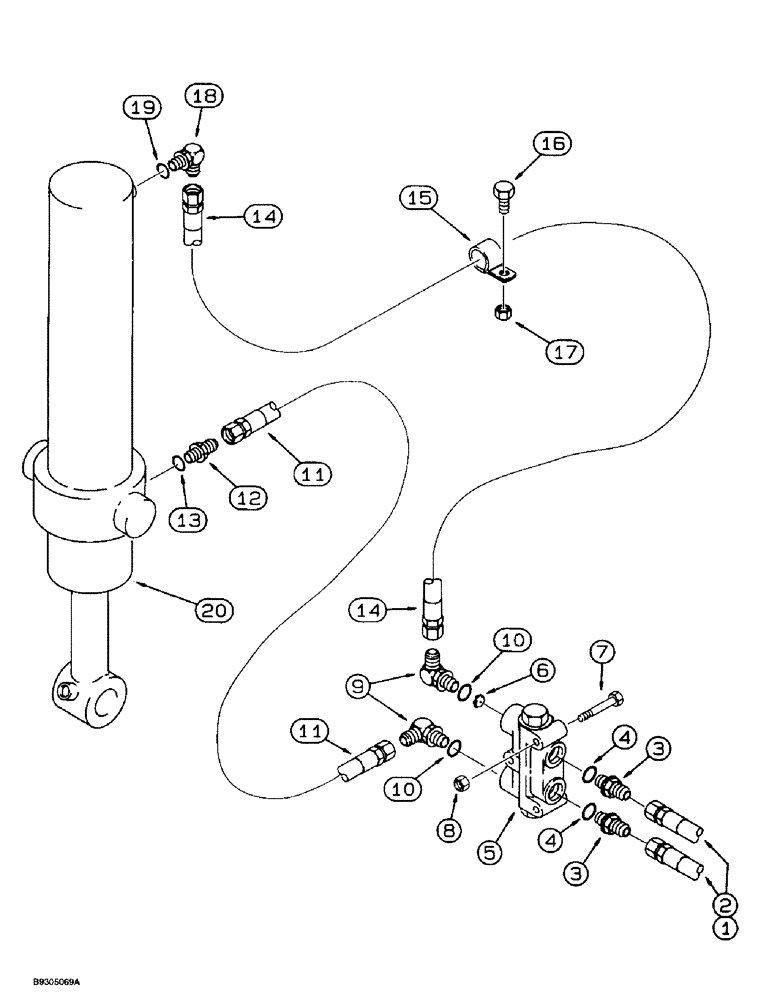

Запчасти Case 560 (8-108) - BOOM LIFT HYDRAULIC CIRCUIT, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

1

109605A1

HOSE

- 600 mm (23-5/8 inch) long, centerline trencher, bulkhead plate to lockout valve

2шт.

2

119666A1

HOSE ASSY.

HOSE - 1100 mm (43-5/16 inch) long, offset trencher, bulkhead plate to lockout valve

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

H672547

VALVE

ASSEMBLY - lockout, trencher, parts list Figure 5-22, Includes: Ref. 6

1шт.

6

H270603

ORIFICE

PLATE - orifice, 0.055 inch, included with H672547 valve assembly, see Figure 5-22 for complete listing of valve components

1шт.

7

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

D81836

HOSE

- 406 mm (16 inch) long, lockout valve to trencher boom lift cylinder, rod end

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 13

1шт.

14

109641A1

HOSE

- 525 mm (20-3/4 inch) long, with sleeve, lockout valve to trencher boom lift cylinder, closed end

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 19

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - trencher boom lift, see Figures 8-112 and 8-113A for correct cylinder, see Figure 9-58 for cylinder mounting

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
