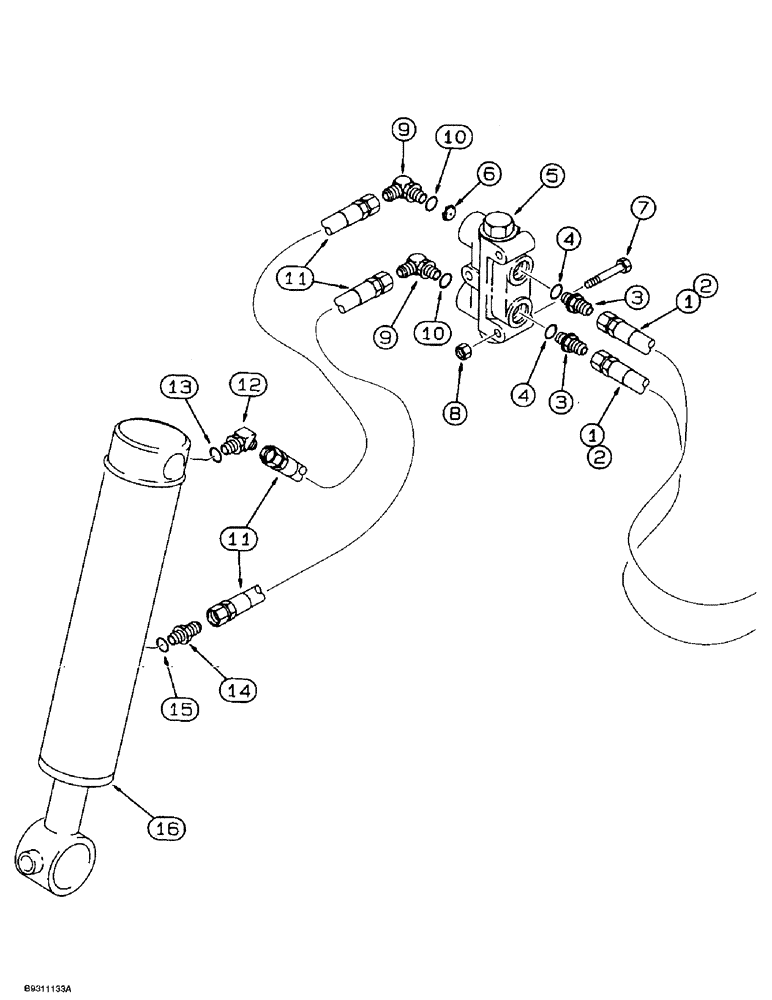

Запчасти Case 560 (8-106) - BOOM LIFT HYDRAULIC CIRCUIT, DIRECT DRIVE TRENCHER (08) - HYDRAULICS

1

109605A1

HOSE

- 600 mm (23-5/8 inch) long, with sleeve, right-hand rear console to trencher boom lockout valve, used with centerline trencher attachment UNIQUE

2шт.

2

119666A1

HOSE ASSY.

HOSE - 1100 mm (43-5/16 inch) long, with sleeve, right-hand rear console to trencher boom lockout valve, used with offset trencher attachment UNIQUE

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 4 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Common centerline and offset trencher parts

1шт.

5

H672547

VALVE

ASSEMBLY - lockout, parts list Figure 5-22, Includes: Ref. 6 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

6

H270603

ORIFICE

PLATE - orifice, 0.055 inch, used in C port of trencher boom lockout valve, included with H672547 valve assembly, see Figure 5-22 for complete listing of valve components COMMON CENTERLINE AND OFFSET PARTS

1шт.

7

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch COMMON CENTERLINE AND OFFSET TRENCHER PARTS

2шт.

8

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Common centerline and offset trencher parts 5/16"-18, GC

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 10 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Common centerline and offset trencher parts

1шт.

11

D81836

HOSE

- 406 mm (16 inch) long, trencher boom lockout valve to trencher boom lift cylinder COMMON CENTERLINE AND OFFSET PARTS

2шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 13 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 15 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

16

114705A1

CYLINDER

ASSEMBLY - 76 (3) ID x 305 mm (12 inch) stroke, boom lift, parts list Figure 8-110, see Figure 9-56 for mounting COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Common centerline and offset trencher parts

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Common centerline and offset trencher parts

1шт.
