Запчасти Case 560 (8-102) - TRENCHER DRIVE HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE TO MOTOR (08) - HYDRAULICS

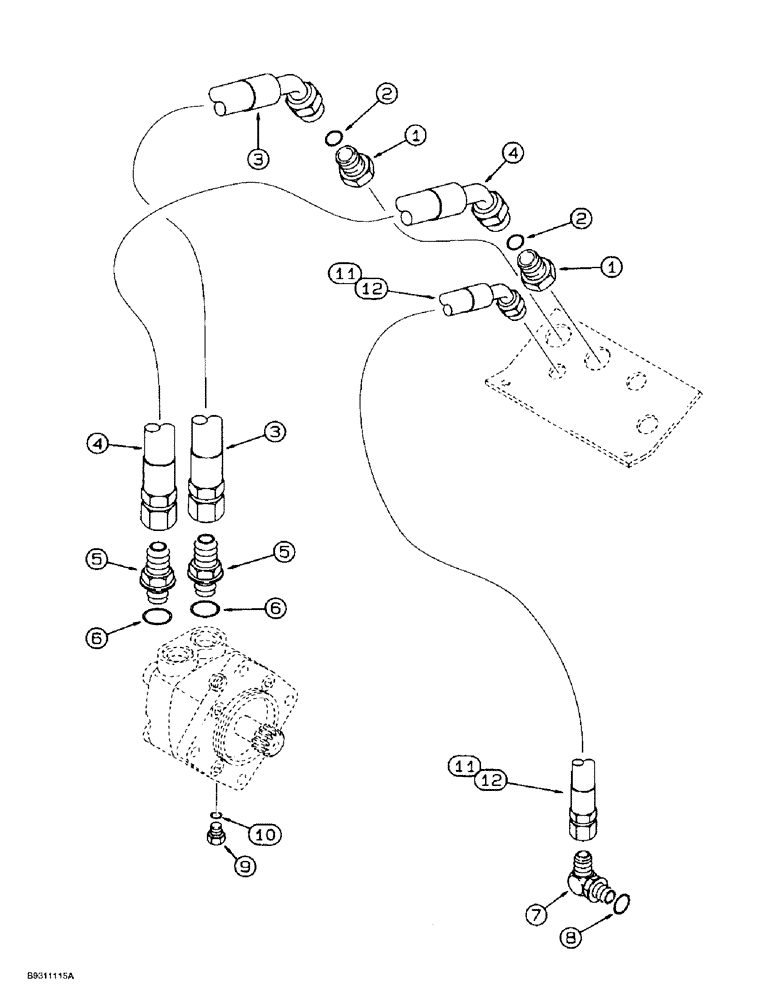

Схема запчастей Case 560 - (8-102) - TRENCHER DRIVE HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE TO MOTOR (08) - HYDRAULICS
4
2
4
1
12
10
9
1
3
11
6
5
6
11
8
12
5
3
7
2

Артикул

Название

Примечание

Количество

1

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face COMMON CENTERLINE AND OFFSET TRENCHER PARTS

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Common centerline and offset trencher parts -018, 90 Duro, .739" ID x .070" Thk

1шт.

3

127253A2

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, with sleeve, rear bulkhead plate to trencher drive motor "A" port COMMON CENTERLINE AND OFFSET PARTS

1шт.

4

127252A2

HOSE ASSY.

HOSE - 1175 mm (46-1/4 inch) long, with sleeve, rear bulkhead plate to trencher drive motor "B" port COMMON CENTERLINE AND OFFSET PARTS

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 6 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Common centerline and offset trencher parts

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 8 COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk COMMON CENTERLINE AND OFFSET TRENCHER PARTS

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 10, Common Centerline and Offset Trencher Parts Hex Hd, 9/16"-18 ORB

1шт.

11

128847A1

HOSE

- 1085 mm (42-3/4 inch) long, with sleeve, case drain, bulkhead plate to tube, used with centerline trencher attachment UNIQUE

1шт.

12

133132A1

HOSE

- 1250 mm (49-1/4 inch) long, with sleeve, case drain, bulkhead plate to tube, used with offset trencher attachment UNIQUE

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Common centerline and offset trencher parts

1шт.

Выбрано товаров: 12
