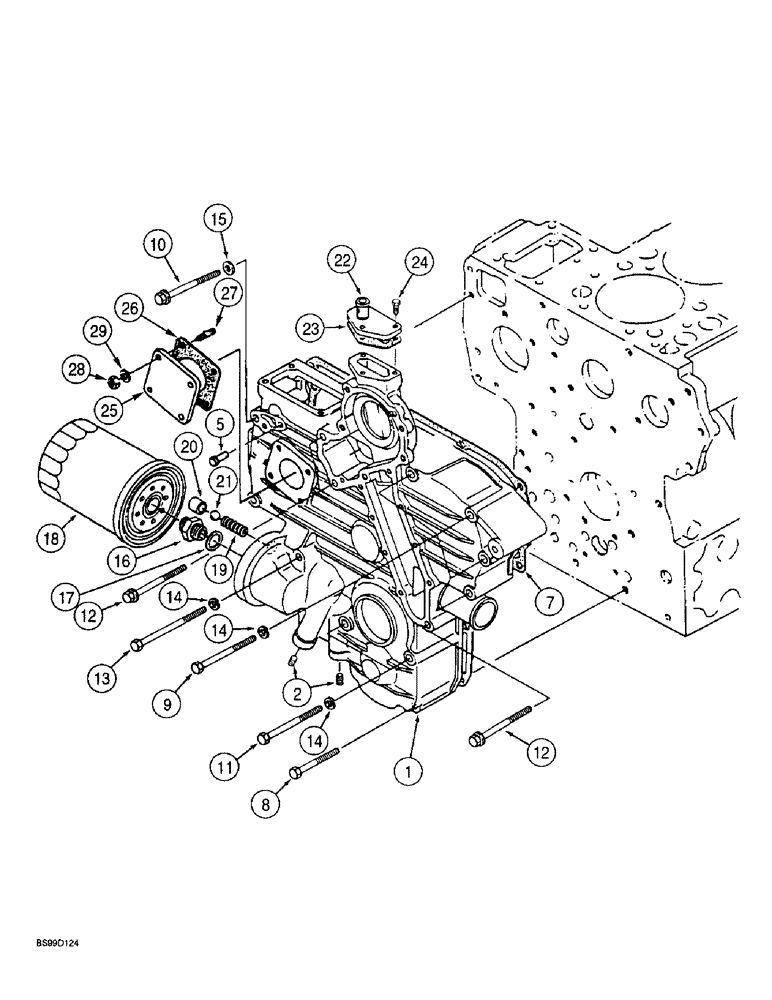

Запчасти Case 560 (2-05A) - FRONT GEAR COVER, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (02) - ENGINE

370077A1

CASE ASSY.

COVER ASSEMBLY - gear, front, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - gear, front

1шт.

2

1959188C2

PLUG

- gear cover

2шт.

3

1959201C1

O-RING

- cover, not shown

2шт.

4

202325A1

O-RING

- cover, not shown

1шт.

5

1959190C1

PIN

- clevis, start spring

1шт.

5a

125174A1

PIN

- straight, not shown

1шт.

6

125823A1

O-RING

O-RING - cover, not shown

2шт.

7

200124A1

GASKET

GASKET - gear cover

1шт.

8

126374A1

CAPTIVE WASHER SCREW

- with lockwasher

2шт.

9

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

- hex, 8 - 1.25 x 70 mm

5шт.

10

126375A1

CAPTIVE WASHER SCREW

- with lockwasher

1шт.

11

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

2шт.

12

126376A1

CAPTIVE WASHER SCREW

- with lockwasher

3шт.

13

814-8095

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

BOLT - hex, 8 - 1.25 x 95 mm

2шт.

14

1959162C1

LOCK WASHER

- lock, special

9шт.

15

126373A1

SPRING WASHER

WASHER - flat

1шт.

16

126377A1

PIPE

ADAPTER - filter

1шт.

17

126124A1

WASHER

- flat, special

1шт.

18

126385A1

FILTER, ELEMENT

FILTER - oil, cartridge, see note

1шт.

The engine oil filter is removed from location shown on Figure 2-5A and relocated to remote location shown on Figure 2-40. See Figure 2-40 for remote oil filter mounting.

1шт.

19

126378A1

SPRING

- compression

1шт.

20

126379A1

SEAT, VALVE

SEAT - valve

1шт.

21

126380A1

BALL

- spring

1шт.

22

126381A1

FLANGE

- water return

1шт.

23

126382A1

GASKET

- flange

1шт.

24

1959215C1

BOLT

- hex, with lock washer

3шт.

25

1959202C1

PLATE

COVER - gear case

1шт.

26

1981626C1

GASKET

- cover

1шт.

27

1959204C1

STUD

- mounting

4шт.

28

1959205C1

NUT

- hex, special

4шт.

29

1959206C1

SPRING WASHER

- lock

4шт.
