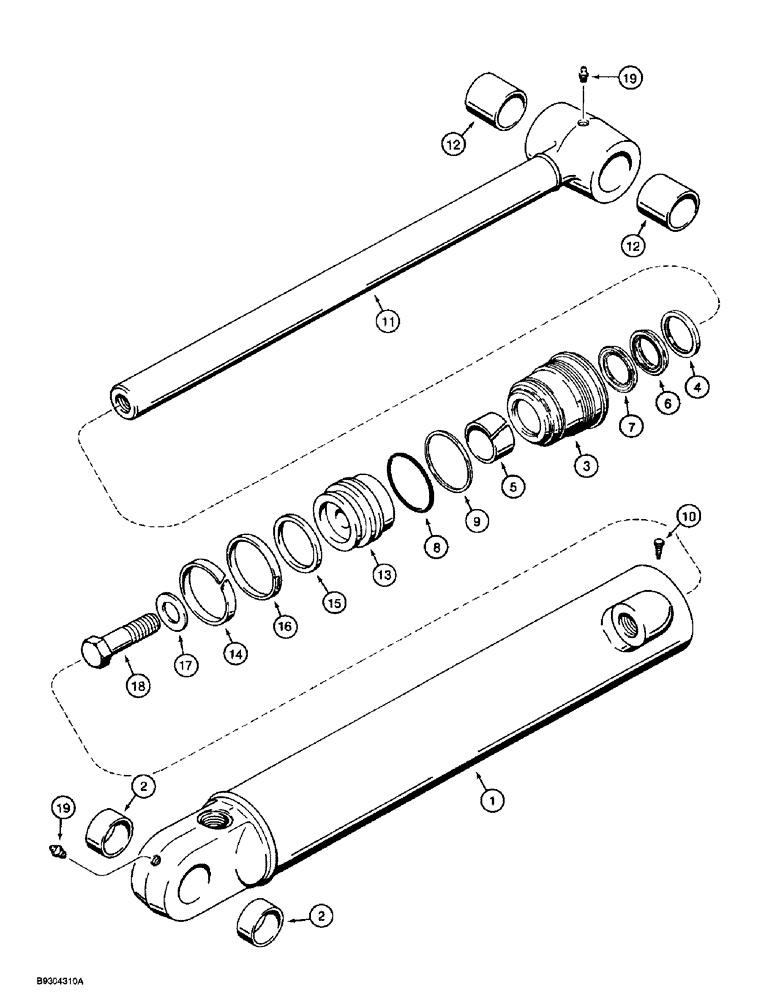

Запчасти Case 560 (8-098) - BACKHOE BUCKET CYLINDER ASSEMBLY - 1346397C2, D125 BACKHOE (08) - HYDRAULICS

1346397C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 559 mm (22 inch), backhoe bucket, Includes: Ref. 1 - 19

1шт.

1346398C2

TUBE

ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, has identification groove on outer lip, Includes: Ref. 3 - 9

1шт.

3

1346403C2

GLAND

- cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 13464092C2 kit, See below

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

6

1542997C1

SEALING RING

- rod, NSS, order 13464092C2 kit, see below

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

7

1542996C1

SEAL

- buffer, NSS, order 13464092C2 kit, see below

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

1346405C1

PISTON ROD

ROD ASSEMBLY - Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - piston, 38 mm diameter

1шт.

12

D31141

BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L

- 41 mm (1-5/8 inch) long

2шт.

13

1346408C1

JACK PISTON

PISTON - cylinder

1шт.

14

G105187

RING

- wear, piston

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

15

G104439

RING

- seal, inner, piston

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- piston, expandable, outer

1шт.

Part of Gasket Kit, P/N 1346409C2

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1346409C2

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 6, 7, 8, 9, 14, 15, 16, a buffer seal not used in this application, and an instruction sheet

1шт.
