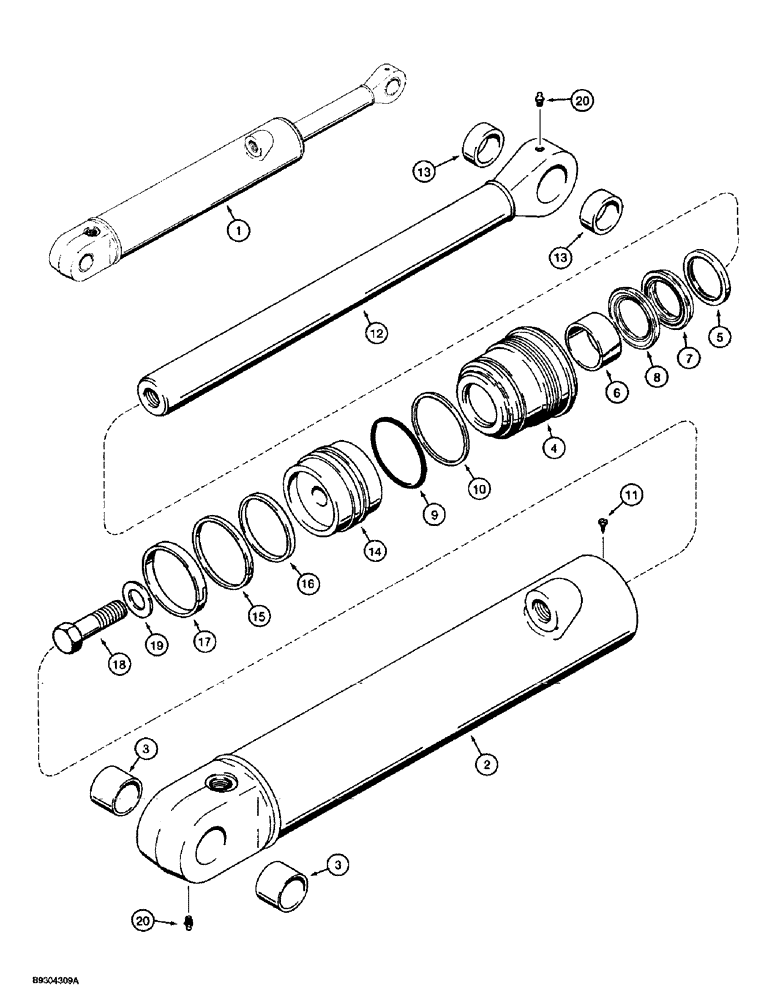

Запчасти Case 560 (8-096) - BACKHOE DIPPER CYLINDER ASSEMBLY - 1346411C2, D125 BACKHOE (08) - HYDRAULICS

1

1346411C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 498 mm (19-5/8 inch stroke), backhoe dipper, Includes: Ref. 1 - 20

1шт.

2

1346412C1

TUBE

ASSEMBLY - cylinder

1шт.

3

R10754

BUSHING

- cylinder tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, has identification groove on outer lip, Includes: Ref. 4 - 10

1шт.

4

1346417C1

GLAND

- cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 1543256C1, See below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

7

1542997C1

SEALING RING

- rod, NSS, order 1543256C1, see below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

8

1542996C1

SEAL

- buffer, NSS, order 1543256C1, see below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1346414C2

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

1шт.

14

1543369C1

PISTON

- cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 4, 5, 6, 7, 8, 9, 10, 15, 16 , 17 and an instruction sheet

1шт.
