Запчасти Case 560 (8-095A) - BACKHOE BOOM CYLINDER ASSEMBLY - 305352A1, D125 BACKHOE (08) - HYDRAULICS

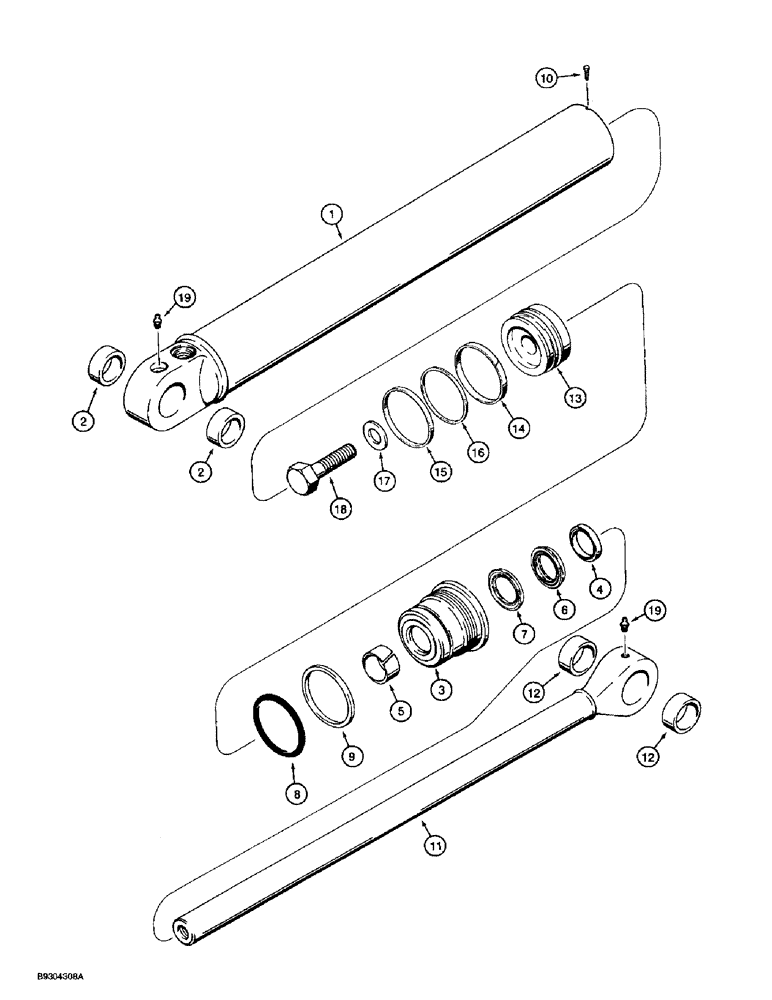

Схема запчастей Case 560 - (8-095A) - BACKHOE BOOM CYLINDER ASSEMBLY - 305352A1, D125 BACKHOE (08) - HYDRAULICS
9
16
15
8
12
6
10
19
18
2
11
19
14
7
12
1
17
13
5
4
3
2

Артикул

Название

Примечание

Количество

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 551 mm (21-11/16 inch) stroke, backhoe boom, Includes: Ref. 1 - 19

1шт.

1346451C1

TUBE

ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, has identification groove on outer lip, Includes: Ref. 3 - 9

1шт.

3

1346417C1

GLAND

- cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 1543256C1, See below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

6

1542997C1

SEALING RING

- rod, NSS, order 1543256C1, see below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

7

1542996C1

SEAL

- buffer, NSS, order 1543256C1, see below

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

305353A1

ROD ASSY.

ROD ASSEMBLY - piston, 38 mm (1-1/2 inch) diamter, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - piston, 38 mm diameter

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long

2шт.

13

305356A1

PISTON

- cylinder

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Gasket Kit, P/N 1543256C1

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

18

28-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 4, 5, 6, 7, 8, 9, 14, 15 and 16

1шт.
