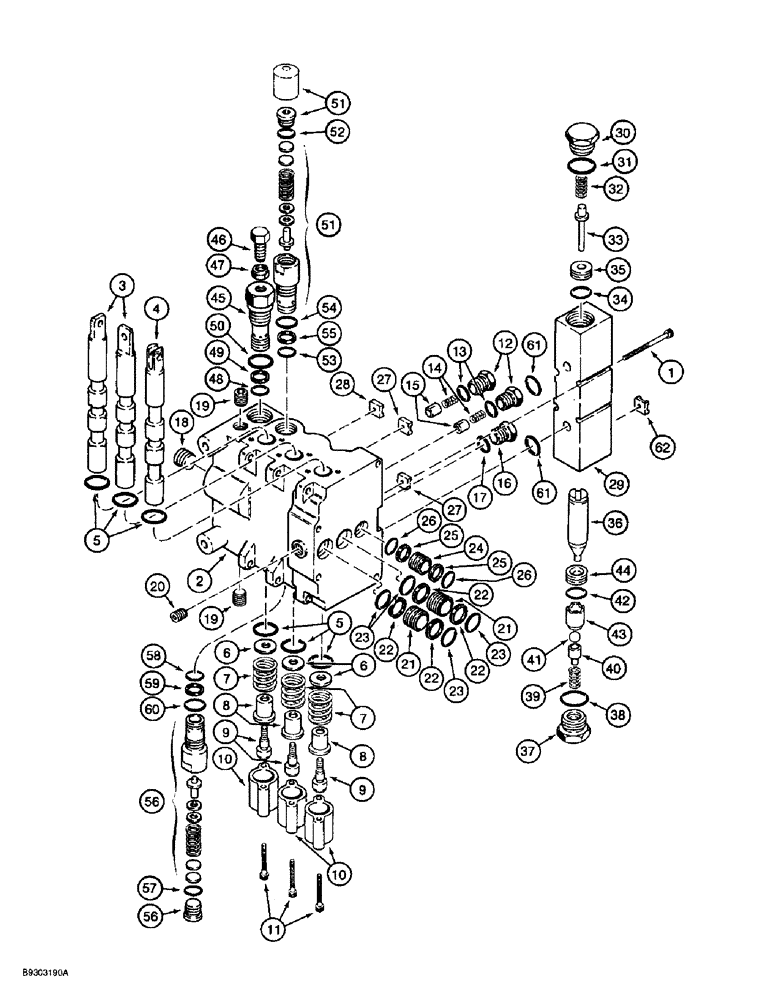

Запчасти Case 560 (8-084) - BACKHOE CONTROL VALVE ASSEMBLY - H674500, INLET SECTION, D125 BACKHOE (08) - HYDRAULICS

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-82 - 8-88, see Figure 9-36 for mounting, Includes: Ref. 1 - 62

1шт.

1

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

BOLT - hex socket, No. 10 NF x 2-1/2 inch

4шт.

H674530

VALVE

SECTION ASSEMBLY - inlet, Includes: Ref. 1 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - inlet section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - dual control

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - stabilizer

1шт.

5

H438030

O-RING

- spool

6шт.

H438021

SET

KIT - spring centering, Includes: Ref. 6 - 11

3шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

7

N9539

TENSION SPRING

SPRING - centering

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - shoulder, special

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

11

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

H438024

SET

KIT - load check, Includes: Ref. 12 - 20

2шт.

12

H438231

PLUG

- load check, Includes: Ref. 13

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

16

H438231

PLUG

- load check

1шт.

18

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT

1шт.

19

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

20

H438960

PLUG

- seal

1шт.

21

H438028

TUBE

SLEEVE - body, large, Includes: Ref. 22 and 23

2шт.

22

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, sleeve O-ring

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Sleeve -016, 90 Duro, .614" ID x .070" Thk

2шт.

24

H438029

TUBE

SLEEVE - body, small, Includes: Ref. 25 and 26

1шт.

25

H438044

GASKET

RING - backup, sleeve O-ring

2шт.

26

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

27

100403A1

PLATE

PLATE - orifice, 1.854 mm (0.073 inch)

2шт.

28

H438041

LARGE PLATE

PLATE - orifice, 3.505 mm (0.138 inch)

1шт.

100405A1

BLOCK ASSY.

VALVE ASSEMBLY - pilot check, Includes: Ref. 29 - 44

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pilot check

1шт.

30

113751A1

PLUG

- pilot check

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

32

113747A1

SPRING

- poppet

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

33

H438334

VALVE

POPPET - cartridge

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

35

113750A1

SEAT

- poppet

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

36

113749A1

PLUNGER

- pilot check

1шт.

Part of Plunger Kit, P/N 111935A1

1шт.

37

H438031

PLUG

- pilot check

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 1/16 inch wide, plunger

1шт.

39

102712A1

SPRING

- pilot check

1шт.

40

H438032

SLEEVE VALVE

SLEEVE - pilot check

1шт.

41

113748A1

BALL

- pilot check, pilot check

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

H438033

CUP

RETAINER - check ball

1шт.

44

113746A1

SEAT

- pilot check

1шт.

H438940

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 45 - 50

1шт.

45

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H674535

GASKET KIT

KIT - seal, main relief valve, Includes: Ref. 46 - 50

1шт.

46

H438229

ADJUSTMENT SCREW

- relief valve

1шт.

47

H438228

NUT

- relief valve

1шт.

48

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

49

H438044

GASKET

RING - backup

1шт.

50

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

H438952

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, 1800 - 1900 psi, Includes: Ref. 51 - 55

1шт.

51

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H674536

O-RING

KIT - seal, circuit relief valve, Includes: Ref. 52 - 55

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

55

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

H438947

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, 4500 - 4600 psi, Includes: Ref. 56 - 60

1шт.

56

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H674536

O-RING

KIT - seal, circuit relief valve, Includes: Ref. 57 - 60

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

60

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

61

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

62

H438941

ORIFICE

PLATE - orifice, 2.388 mm (0.094 inch)

1шт.

111935A1

SET OF PARTS

KIT - plunger, Includes: Ref. 30 - 36

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

57

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
